L150CETOL (1990)
Electrical 1

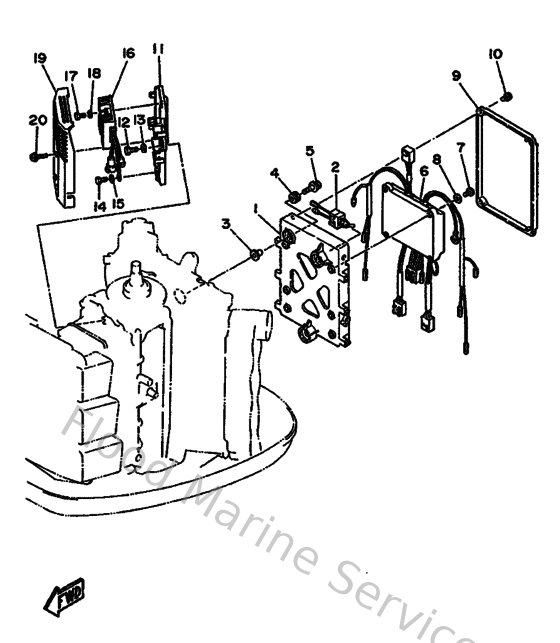

Diagram: Electrical 1
Parts List
Reference
Description
Price
2
6R38259E0000
Switch assembly
Loading…
↗
3
9038706M0300
Collar (676)
Loading…
↗
4
9048009M1200
Grommet (6a0)
Loading…
↗
5
9011906M6000
Bolt, with washer
Loading…
↗
6
6R3855400100
C.d.i. Unit assembly
Loading…
↗
7
985800602000
Screw pan head
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
9
6R3855370000
Cover
Loading…
↗
10
9015906M1100
Screw, with washer(6l2)
Loading…
↗
11
6R3819480094
Bracket
Loading…
↗
12
970950601600
Bolt, hexagon deep recess
Loading…
↗
14
970130601200
Bolt(gh1)
Loading…
↗
16
6R3819601000
Rectifier & regulator assembly
Loading…
↗
17
973130602500
Bolt
Loading…
↗
19
6R3819420000
Cover
Loading…
↗
20
9015906M0800
Screw, with washer(6k7)
Loading…
↗
