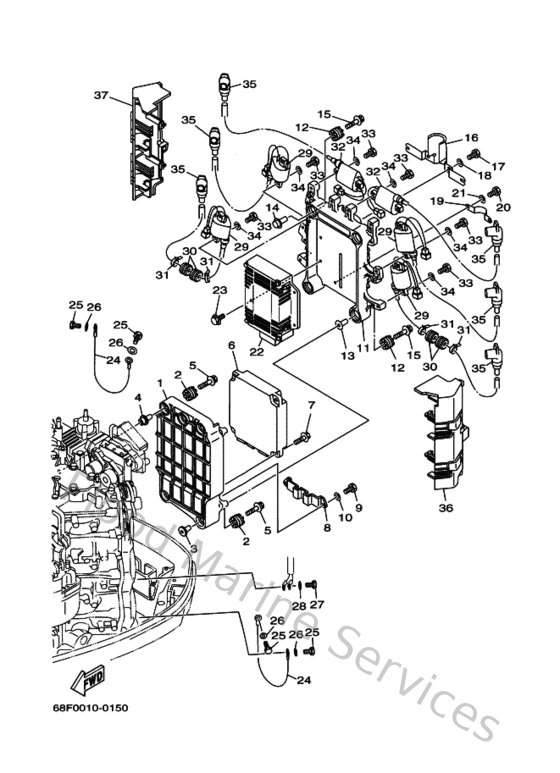

Diagram: Electrical 1

Diagram

Parts List

Reference
Description
Price


1
68F855420094
Bracket
Loading…

↗
2
68F855160100
Spacer
Loading…

↗
3
68F861290000
Collar
Loading…

↗
4
68F861291000
Collar
Loading…

↗
5
68F851190000
Bolt
Loading…

↗
6
68F8591A2000
Engine Control Unit assembly
Loading…

↗
7
9011906MA300
Bolt, with washer
Loading…

↗
8
68F855480100
Holder
Loading…

↗
9
970130601400
Bolt(gj3)
Loading…

↗
10
929900660000
Washer, plain (646)
Loading…

↗
11
68F851420094
Bracket, Reflector 2
Loading…

↗
16
68F855990000
Cover
Loading…

↗
17
970130601200
Bolt(gh1)
Loading…

↗
18
929030660000
Washer, plain (646)
Loading…

↗
19
68F856440000
Plate
Loading…

↗
20
970800601200
Bolt(gh1)
Loading…

↗
22
68F8591B0000
Driver, injector assembly
Loading…

↗
23
9011906MA200
Bolt, with washer
Loading…

↗
24
6G0825190000
Wire, earth lead
Loading…

↗
26
929950660000
Washer, plain (646)
Loading…

↗
27
970950601200
Bolt(gh1)
Loading…

↗
29
68F823100000
Ignition coil assembly
Loading…

↗
30
9048022M1500
Grommet (6e5)
Loading…

↗
31
9046511M1000
Clamp
Loading…

↗
32
68F823101100
Ignition coil assembly
Loading…

↗
33
970130502000
Bolt, hexagon
Loading…

↗
34
929030560000
Washer, plain (646)
Loading…

↗
35
68F823700100
Plug cap assembly
Loading…

↗
36
68F8252U0000
Cover
Loading…

↗
37
68F8252U1000
Cover
Loading…

↗
