115CETOL (1990)
Electrical 2

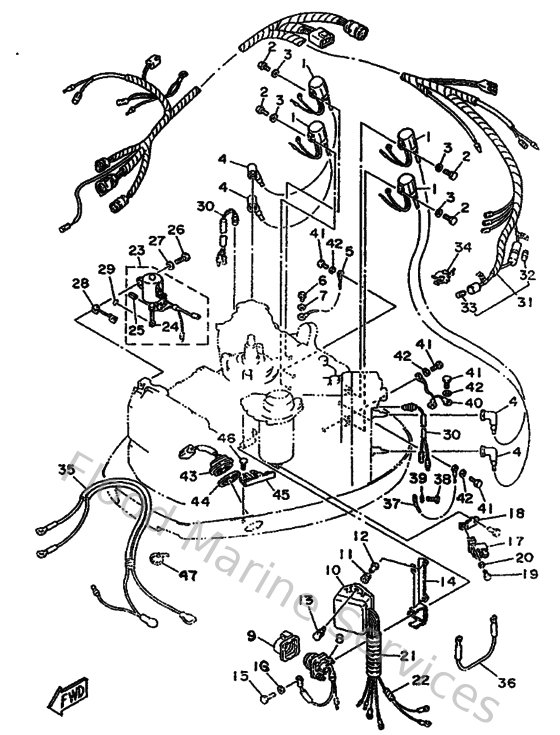

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
6R3855700000
Ignition coil assembly
Loading…
↗
2
973130602000
Bolt(7u8)
Loading…
↗
3
929900660000
Washer, plain (646)
Loading…
↗
4
6G1823702000
Plug cap assembly
Loading…
↗
5
662825190000
Wire, earth lead
Loading…
↗
6
970800601200
Bolt(gh1)
Loading…
↗
8
6E5819411100
Starter relay assembly
Loading…
↗
9
689819521000
Holder, starter relay
Loading…
↗
10
6G5819500100
Relay assembly
Loading…
↗
11
6A0823170000
Damper, ignition coil
Loading…
↗
12
903870611900
Collar
Loading…
↗
13
9011906M6400
Bolt, with washer
Loading…
↗
14
6E5819481000
Bracket
Loading…
↗
15
973950601600
Bolt, hexagon deep recess
Loading…
↗
17
6H5819200000
Terminal assembly
Loading…
↗
18
6G5819290000
Bracket, Terminal
Loading…
↗
19
973950601200
Bolt(gh1)
Loading…
↗
21
6N7835570000
Tube
Loading…
↗
22
9044610M0100
Tube (6e5)
Loading…
↗
24
6N7861160000
Wire, pull
Loading…
↗
25
916903001000
Pin, spring (663)
Loading…
↗
26
973130603000
Bolt
Loading…
↗
28
6N7861120000
Stay, solenoid
Loading…
↗
29
932100326100
O-ring (663)
Loading…
↗
30
688825601000
Thermo switch assembly
Loading…
↗
31
6N7825901000
Wire Harness assembly
Loading…
↗
32
682821510100
Fuse
Loading…
↗
33
705821510000
Fuse (30a)
Loading…
↗
34
6G5821520000
Holder, fuse
Loading…
↗
35
6N7821050000
Battery Cable
Loading…
↗
36
6E5821170000
Wire, lead
Loading…
↗
37
6R3825190000
Wire, earth lead
Loading…
↗
40
6E5825310000
Wire, lead
Loading…
↗
43
6R3825630100
Trim & tilt switch assembly
Loading…
↗
44
6E5825870000
Gasket
Loading…
↗
45
6R3836140000
Bracket
Loading…
↗
47
9046513M1800
Clamp
Loading…
↗
