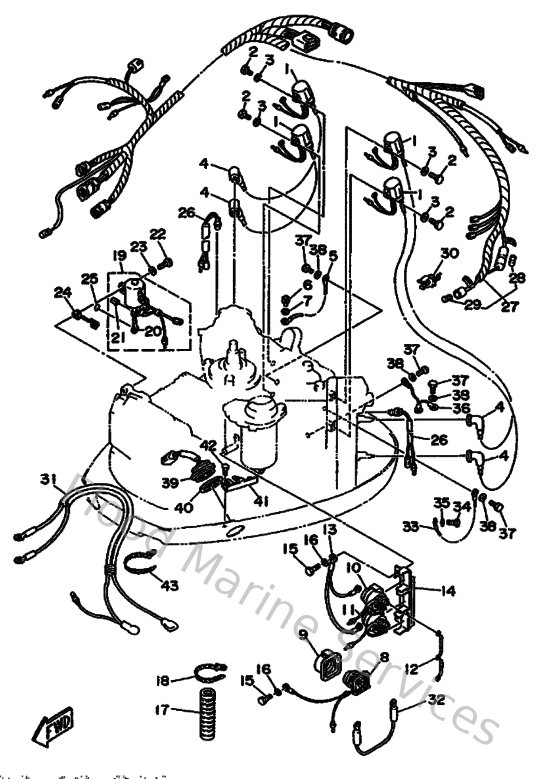

Diagram: Electrical 2

Diagram

Parts List

Reference
Description
Price


1
6R3855700000
Ignition coil assembly
Loading…

↗
2
973130602000
Bolt(7u8)
Loading…

↗
3
929900660000
Washer, plain (646)
Loading…

↗
4
6G1823702000
Plug cap assembly
Loading…

↗
5
662825190000
Wire, earth lead
Loading…

↗
6
970800601200
Bolt(gh1)
Loading…

↗
8
6E5819411100
Starter relay assembly
Loading…

↗
9
689819521000
Holder, starter relay
Loading…

↗
10
6E5819500000
Relay assembly
Loading…

↗
11
6E58195A0100
Relay assembly
Loading…

↗
12
6G5871491000
Connector
Loading…

↗
13
6E5821160000
Wire, minus lead
Loading…

↗
14
6E5819481000
Bracket
Loading…

↗
15
973950601600
Bolt, hexagon deep recess
Loading…

↗
17
6N7835570000
Tube
Loading…

↗
18
9046513M3600
Clamp(6h4)
Loading…

↗
19
6N7861100000
Solenoid
Loading…

↗
20
6N7861160000
Wire, pull
Loading…

↗
21
916093001000
Pin, spring (663)
Loading…

↗
22
970800603000
Bolt(jf7)
Loading…

↗
24
6N7861120000
Stay, solenoid
Loading…

↗
25
932100326100
O-ring (663)
Loading…

↗
26
688825601000
Thermo switch assembly
Loading…

↗
28
682821510000
Fuse
Loading…

↗
29
705821510000
Fuse (30a)
Loading…

↗
30
6G5821520000
Holder, fuse
Loading…

↗
31
6N7821050000
Battery Cable
Loading…

↗
32
6E5821170000
Wire, lead
Loading…

↗
33
6R3825190000
Wire, earth lead
Loading…

↗
36
6E5825310000
Wire, lead
Loading…

↗
37
973950601200
Bolt(gh1)
Loading…

↗
39
6R3825630100
Trim & tilt switch assembly
Loading…

↗
40
6E5825870000
Gasket
Loading…

↗
41
6R3836140000
Bracket
Loading…

↗
