140BETOL (1989)
Electrical 2

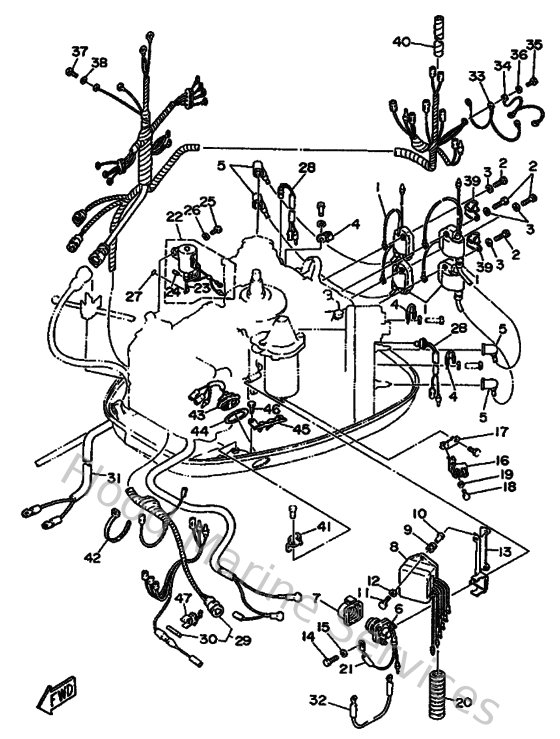

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
6E5855701000
Ignition coil assembly
Loading…
↗
2
973130603000
Bolt
Loading…
↗
3
929900660000
Washer, plain (646)
Loading…
↗
4
904650802800
Clamp (1e6)
Loading…
↗
5
6G1823702000
Plug cap assembly
Loading…
↗
6
61A819410000
Starter relay assembly
Loading…
↗
7
689819521000
Holder, starter relay
Loading…
↗
8
6G5819500100
Relay assembly
Loading…
↗
9
6A0823170000
Damper, ignition coil
Loading…
↗
10
624425420000
Collar
Loading…
↗
11
973130602500
Bolt
Loading…
↗
12
9020106M6200
Washer, plate (6e5)
Loading…
↗
13
6E5819481000
Bracket
Loading…
↗
14
973950601600
Bolt, hexagon deep recess
Loading…
↗
16
6H5819200000
Terminal assembly
Loading…
↗
17
6G5819290000
Bracket, Terminal
Loading…
↗
18
973950601200
Bolt(gh1)
Loading…
↗
20
6G1835570000
Tube
Loading…
↗
21
9044610M0100
Tube (6e5)
Loading…
↗
22
6E5861100200
Solenoid
Loading…
↗
23
6E5861160100
Wire, pull
Loading…
↗
24
916093001000
Pin, spring (663)
Loading…
↗
25
970950601600
Bolt, hexagon deep recess
Loading…
↗
27
932100326100
O-ring (663)
Loading…
↗
28
688825601000
Thermo switch assembly
Loading…
↗
30
663821510000
Fuse
Loading…
↗
31
6E5821051100
Battery cable
Loading…
↗
32
6E5821170100
Wire, lead
Loading…
↗
33
6E5825190000
Wire, Earth Lead
Loading…
↗
34
6E5825310000
Wire, lead
Loading…
↗
37
970800602000
Bolt(7u8)
Loading…
↗
39
9046508M1200
Clamp (6e5)
Loading…
↗
41
9046512M2500
Clamp (6e5)
Loading…
↗
42
9046513M3000
Clamp
Loading…
↗
43
6E5825630000
Trim & tilt switch assembly
Loading…
↗
44
6E5825870000
Gasket
Loading…
↗
45
6E5836140100
Bracket
Loading…
↗
46
973130601600
Bolt, hexagon deep recess
Loading…
↗
47
6G5821520000
Holder, fuse
Loading…
↗
