150AETOL (2000)
Electrical 2

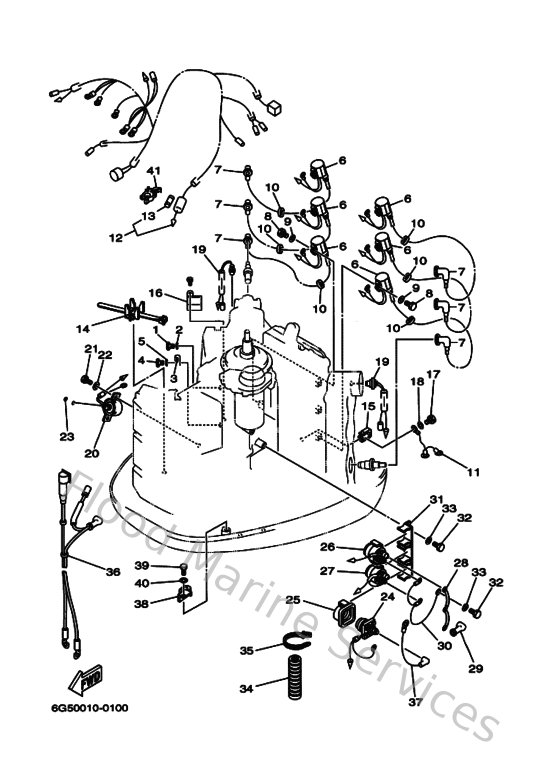

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
970130601200
Bolt(gh1)
Loading…
↗
2
929030660000
Washer, plain (646)
Loading…
↗
3
9046506M8600
Clamp
Loading…
↗
5
929900660000
Washer, plain (646)
Loading…
↗
6
6R3855700100
Ignition coil assembly
Loading…
↗
7
6E3823702100
Plug cap assembly
Loading…
↗
8
970950602000
Bolt(7u8)
Loading…
↗
9
929950660000
Washer, plain (646)
Loading…
↗
10
904802516100
Grommet(656)
Loading…
↗
11
6E5825311000
Wire, lead
Loading…
↗
12
6G6825900000
Wire Harness Assembly
Loading…
↗
13
682821510000
Fuse
Loading…
↗
14
688825940000
Clamp
Loading…
↗
15
9046505M8700
Clamp
Loading…
↗
16
9046508M8900
Clamp
Loading…
↗
17
970800601200
Bolt(gh1)
Loading…
↗
19
688825601000
Thermo switch assembly
Loading…
↗
20
64D861100000
Solenoid
Loading…
↗
21
970950601600
Bolt, hexagon deep recess
Loading…
↗
23
932100326100
O-ring (663)
Loading…
↗
24
61A819410000
Starter relay assembly
Loading…
↗
25
689819521000
Holder, starter relay
Loading…
↗
26
6E5819500000
Relay assembly
Loading…
↗
27
6E58195A0100
Relay assembly
Loading…
↗
28
6G5871491000
Connector
Loading…
↗
29
6G5821190000
Cover, lead wire
Loading…
↗
30
6E5821160000
Wire, minus lead
Loading…
↗
31
6G5819481100
Bracket
Loading…
↗
34
6E9835577000
Tube
Loading…
↗
35
9046513M1800
Clamp
Loading…
↗
36
6G5821050200
Battery cable
Loading…
↗
37
6E5821170100
Wire, lead
Loading…
↗
38
9046512M2500
Clamp (6e5)
Loading…
↗
39
970950601200
Bolt(gh1)
Loading…
↗
41
6G5821520000
Holder, fuse
Loading…
↗
