200AETOL (1988)
Electrical 2

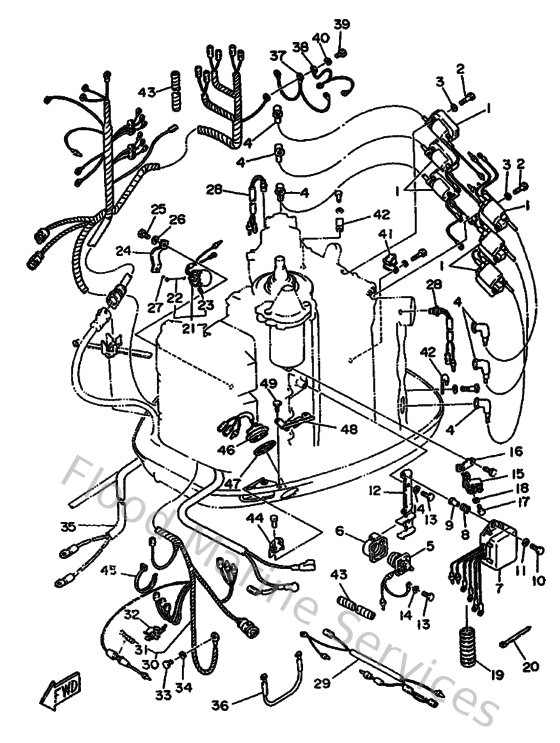

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
6E5855701000
Ignition coil assembly
Loading…
↗
2
973130603000
Bolt
Loading…
↗
3
929900660000
Washer, plain (646)
Loading…
↗
4
6E3823702000
Plug cap assembly
Loading…
↗
5
61A819410000
Starter relay assembly
Loading…
↗
6
689819521000
Holder, starter relay
Loading…
↗
7
6G5819500100
Relay assembly
Loading…
↗
8
6A0823170000
Damper, ignition coil
Loading…
↗
9
624425420000
Collar
Loading…
↗
10
973130602500
Bolt
Loading…
↗
11
9020106M6200
Washer, plate (6e5)
Loading…
↗
12
6G5819481000
Bracket
Loading…
↗
13
973950601600
Bolt, hexagon deep recess
Loading…
↗
15
6H5819200000
Terminal assembly
Loading…
↗
16
6G5819290000
Bracket, Terminal
Loading…
↗
17
973950601200
Bolt(gh1)
Loading…
↗
19
6G1835570000
Tube
Loading…
↗
20
9046511M1000
Clamp
Loading…
↗
21
6G5861100100
Solenoid
Loading…
↗
22
6G5861190000
Wire, Pull
Loading…
↗
23
916903001000
Pin, spring (663)
Loading…
↗
25
970950601600
Bolt, hexagon deep recess
Loading…
↗
27
932100326100
O-ring (663)
Loading…
↗
28
688825601000
Thermo switch assembly
Loading…
↗
30
6G5825901200
Wire Harness assembly
Loading…
↗
31
663821510000
Fuse
Loading…
↗
32
6G5821520000
Holder, fuse
Loading…
↗
33
970800601200
Bolt(gh1)
Loading…
↗
35
6G5821050100
Battery cable
Loading…
↗
36
6E5821170000
Wire, lead
Loading…
↗
37
6E5825190000
Wire, Earth Lead
Loading…
↗
38
6E5825311000
Wire, lead
Loading…
↗
41
9046508M0800
Clamp (6e5)
Loading…
↗
42
904650802800
Clamp (1e6)
Loading…
↗
43
9044610M0100
Tube (6e5)
Loading…
↗
44
9046512M2500
Clamp (6e5)
Loading…
↗
45
9046513M3000
Clamp
Loading…
↗
46
6E5825630000
Trim & tilt switch assembly
Loading…
↗
47
6E5825870000
Gasket
Loading…
↗
48
6E5836140100
Bracket
Loading…
↗
49
973130601600
Bolt, hexagon deep recess
Loading…
↗
