225AETOL (1988)
Electrical 2

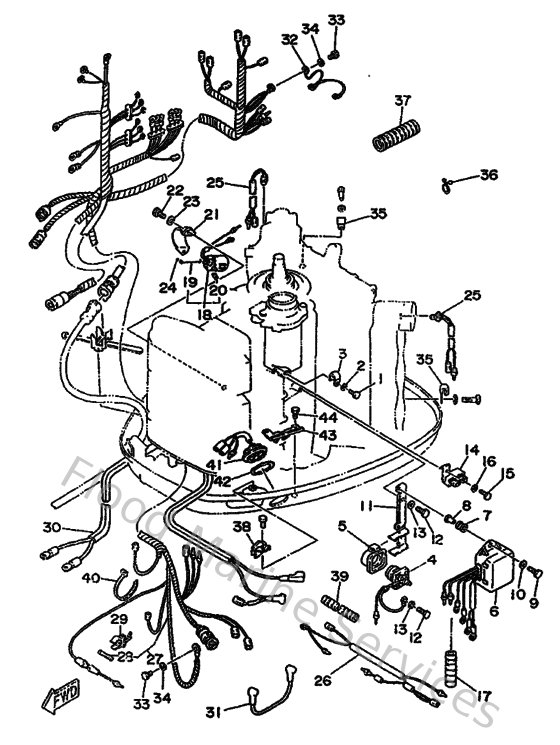

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
973950601200
Bolt(gh1)
Loading…
↗
2
929900660000
Washer, plain (646)
Loading…
↗
3
904650802800
Clamp (1e6)
Loading…
↗
4
6E5819411100
Starter relay assembly
Loading…
↗
5
689819521000
Holder, starter relay
Loading…
↗
8
624425420000
Collar
Loading…
↗
9
973130602500
Bolt
Loading…
↗
10
9020106M6200
Washer, plate (6e5)
Loading…
↗
12
970950601600
Bolt, hexagon deep recess
Loading…
↗
14
6H5819200000
Terminal assembly
Loading…
↗
19
6G5861190000
Wire, Pull
Loading…
↗
20
916903001000
Pin, spring (663)
Loading…
↗
22
973130601600
Bolt, hexagon deep recess
Loading…
↗
24
932100326100
O-ring (663)
Loading…
↗
25
688825601000
Thermo switch assembly
Loading…
↗
28
682821510100
Fuse
Loading…
↗
29
6G5821520000
Holder, fuse
Loading…
↗
31
6K7821170000
Wire, lead
Loading…
↗
32
6E5825310000
Wire, lead
Loading…
↗
33
970800601200
Bolt(gh1)
Loading…
↗
36
9046423M2200
Clamp
Loading…
↗
37
6G1835570000
Tube
Loading…
↗
38
9046512M2500
Clamp (6e5)
Loading…
↗
39
6K7835570000
Tube
Loading…
↗
40
9046513M1800
Clamp
Loading…
↗
41
6H1825630100
Trim & tilt switch assembly
Loading…
↗
42
6E5825630000
Trim & tilt switch assembly
Loading…
↗
43
6E5836140100
Bracket
Loading…
↗
