225BETOL (1993)
Electrical 2

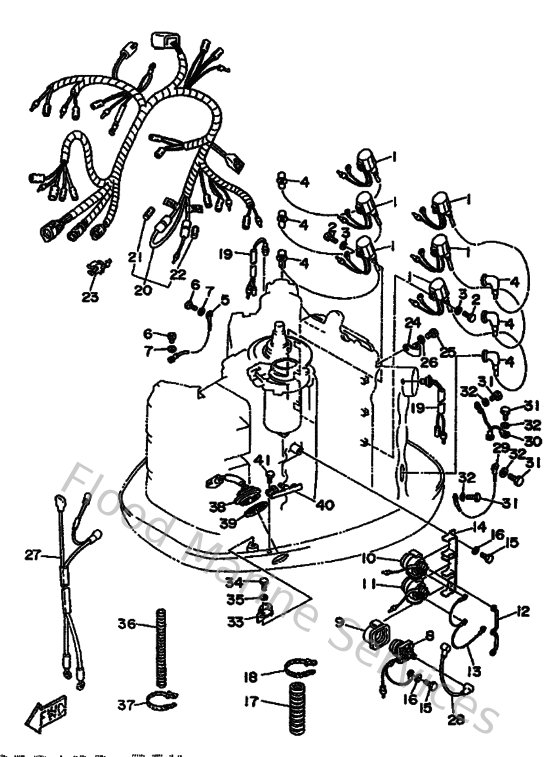

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
6R3855700000
Ignition coil assembly
Loading…
↗
2
973950602000
Bolt(7u8)
Loading…
↗
3
929900660000
Washer, plain (646)
Loading…
↗
4
6E3823702000
Plug cap assembly
Loading…
↗
5
662825190000
Wire, earth lead
Loading…
↗
6
970800601200
Bolt(gh1)
Loading…
↗
8
6E5819411100
Starter relay assembly
Loading…
↗
9
689819521000
Holder, starter relay
Loading…
↗
10
6E5819500100
Relay assembly
Loading…
↗
11
6E58195A0000
Relay assembly
Loading…
↗
12
6G5871491000
Connector
Loading…
↗
13
6E5821160000
Wire, minus lead
Loading…
↗
14
6G5819481100
Bracket
Loading…
↗
15
970950601600
Bolt, hexagon deep recess
Loading…
↗
17
6E9835577000
Tube
Loading…
↗
18
9046513M3600
Clamp(6h4)
Loading…
↗
19
688825601000
Thermo switch assembly
Loading…
↗
21
682821510100
Fuse
Loading…
↗
22
705821510000
Fuse (30a)
Loading…
↗
23
6G5821520000
Holder, fuse
Loading…
↗
24
904650802800
Clamp (1e6)
Loading…
↗
25
973950601200
Bolt(gh1)
Loading…
↗
28
6K7821170000
Wire, lead
Loading…
↗
29
6R3825190000
Wire, earth lead
Loading…
↗
30
6E5825310000
Wire, lead
Loading…
↗
33
9046512M2500
Clamp (6e5)
Loading…
↗
37
9046513M3900
Clamp(6e8)
Loading…
↗
38
6R3825630000
Trim & tilt switch assembly
Loading…
↗
39
6E5825870000
Gasket
Loading…
↗
40
6R3836140000
Bracket
Loading…
↗
41
973950601600
Bolt, hexagon deep recess
Loading…
↗
