250AETOXLX (1990)
Electrical 2

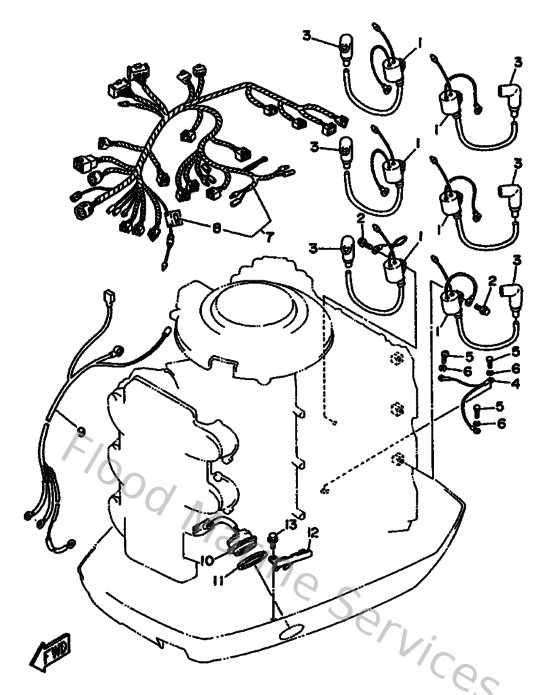

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
61A855700000
Ignition coil assembly
Loading…
↗
2
975130652000
Bolt, with washer(61b)
Loading…
↗
3
6E3823702000
Plug cap assembly
Loading…
↗
4
61A825310000
Wire, lead
Loading…
↗
5
970130601200
Bolt(gh1)
Loading…
↗
6
929900610000
Washer(6a1)
Loading…
↗
8
682821510100
Fuse
Loading…
↗
9
61A821050000
Battery cable
Loading…
↗
10
6R3825630100
Trim & tilt switch assembly
Loading…
↗
11
6E5825870000
Gasket
Loading…
↗
12
61A836140000
Bracket
Loading…
↗
13
973950601600
Bolt, hexagon deep recess
Loading…
↗
