250AETOXLX (1998)
Electrical 2

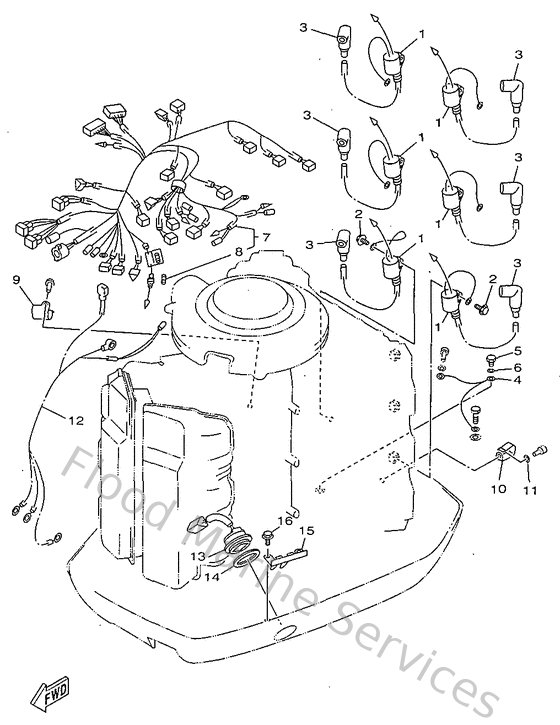

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
61A855700000
Ignition coil assembly
Loading…
↗
2
975130652000
Bolt, with washer(61b)
Loading…
↗
3
6E3823702000
Plug cap assembly
Loading…
↗
4
61A825310000
Wire, lead
Loading…
↗
5
970800601200
Bolt(gh1)
Loading…
↗
6
929950610000
Washer(6a1)
Loading…
↗
7
61A825900300
Wire Harness Assembly
Loading…
↗
8
682821510000
Fuse
Loading…
↗
9
9046510M1400
Clamp
Loading…
↗
10
9046508M3300
Clamp(6t4)
Loading…
↗
11
929900660000
Washer, plain (646)
Loading…
↗
12
61A821050000
Battery cable
Loading…
↗
13
6R3825630100
Trim & tilt switch assembly
Loading…
↗
14
6E5825870000
Gasket
Loading…
↗
15
61A836140000
Bracket
Loading…
↗
16
970950601200
Bolt(gh1)
Loading…
↗
