30DMH (1986)
Electrical 2

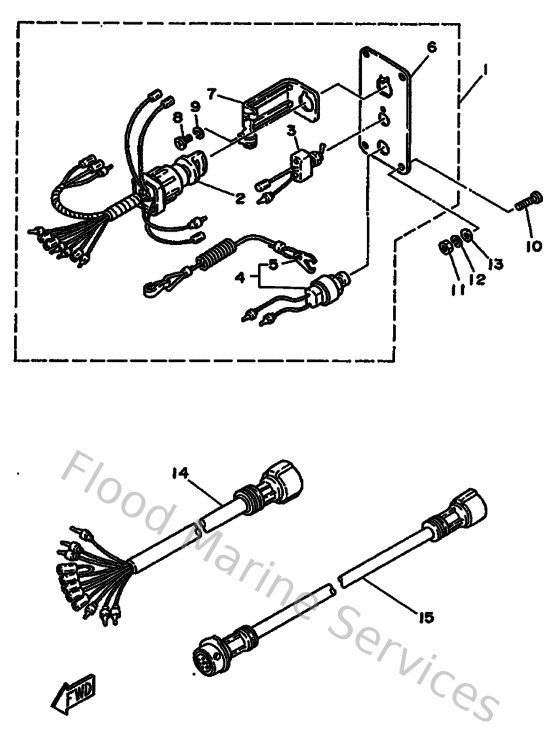

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
689825701400
Panel Switch assembly
Loading…
↗
2
688825101100
Main switch assembly
Loading…
↗
3
688825740000
Switch, choke
Loading…
↗
4
688825750200
Engine stop switch assembly
Loading…
↗
5
682825560000
Lanyard, stop switch
Loading…
↗
6
689825710200
Panel, Switch
Loading…
↗
7
663825810100
Stay, cord clamp
Loading…
↗
8
985800400800
Screw, pan head (713)
Loading…
↗
9
929010410000
Ybs67-4 washer, spring
Loading…
↗
10
9014905M0500
Screw(6k0)
Loading…
↗
11
953800560000
Nut, hexagon (663)
Loading…
↗
12
929900510000
Ybs67-5 washer, spring
Loading…
↗
13
929900560000
Washer, plain (646)
Loading…
↗
14
688825862100
Extension, wire harness
Loading…
↗
15
688825861100
Extension, wire harness
Loading…
↗
