40QMH (1993)
Electrical 2

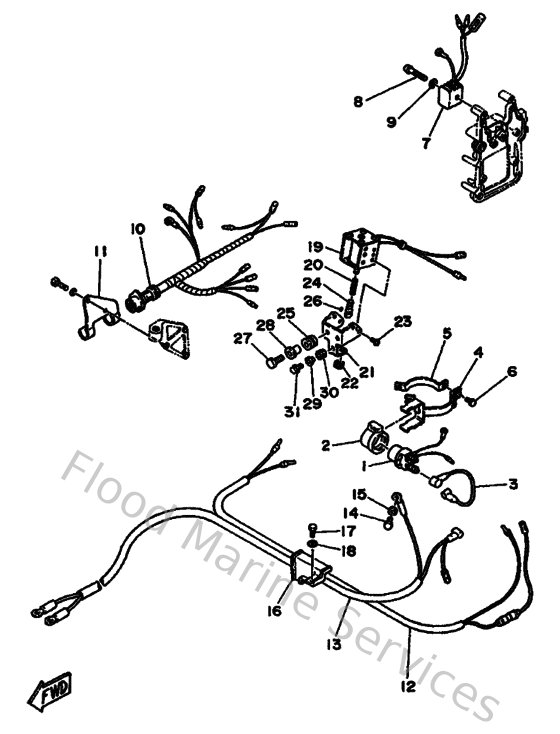

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
6G1819411000
Starter relay
Loading…
↗
2
6G1819520000
Holder, relay
Loading…
↗
4
6E9819450100
Plate, Switch Fitting
Loading…
↗
5
6E9819530000
Stay, Relay
Loading…
↗
6
973950601600
Bolt, hexagon deep recess
Loading…
↗
7
664819706100
Rectifier assembly
Loading…
↗
8
985800552500
Screw, panhead (a93)
Loading…
↗
9
929900560000
Washer, plain (646)
Loading…
↗
12
6E9819710000
Wire Lead
Loading…
↗
13
6E9821051000
Battery cable
Loading…
↗
14
973800801200
Bolt, hexagon
Loading…
↗
15
929900810000
Ybs67-8 washer, spring
Loading…
↗
17
970800601200
Bolt(gh1)
Loading…
↗
18
929900660000
Washer, plain (646)
Loading…
↗
19
6E9861110000
Coil, solenoid
Loading…
↗
20
682861160000
Wire, pull
Loading…
↗
21
6E9861120000
Stay, Solenoid
Loading…
↗
22
904801015500
Grommet(664)
Loading…
↗
23
985800500800
Screw, pan head (7g3)
Loading…
↗
24
682861170000
Hook, wire pull
Loading…
↗
26
932100326100
O-ring (663)
Loading…
↗
27
973130602500
Bolt
Loading…
↗
28
624425420000
Collar
Loading…
↗
29
9038706M4300
Coller (6e9)
Loading…
↗
30
9048013M2400
Grommet (6e9)
Loading…
↗
31
958950601600
Bolt, flange deep recess
Loading…
↗
