50HM (2001)
Electrical 2

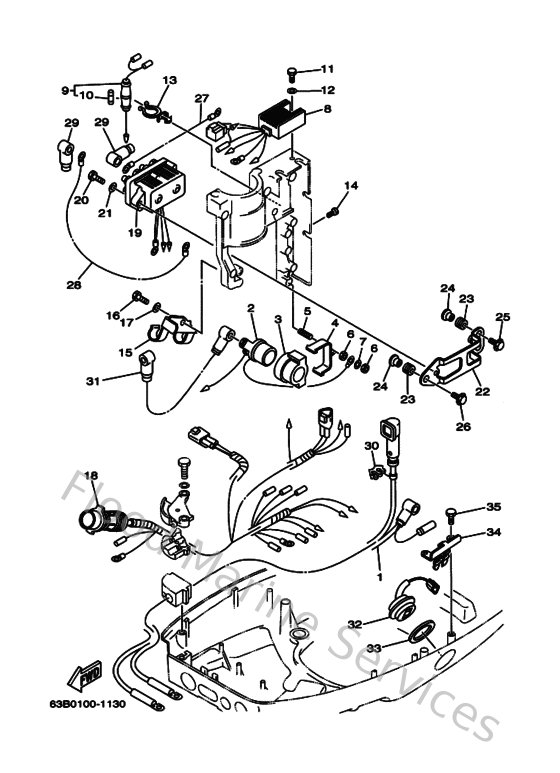

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
6H4821050200
Battery cable
Loading…
↗
2
6G1819411000
Starter relay
Loading…
↗
3
6H4819520000
Holder, relay
Loading…
↗
4
6H4819450000
Plate, switch fitting
Loading…
↗
5
9011606M2200
Bolt, stud (6h1)
Loading…
↗
6
953800660000
Nut(661)
Loading…
↗
7
929900660000
Washer, plain (646)
Loading…
↗
8
6H2819601000
Rectifier & regulator assembly
Loading…
↗
9
6H4821500000
Fuse holder assembly
Loading…
↗
10
682821510000
Fuse
Loading…
↗
11
970800601400
Bolt(gj3)
Loading…
↗
12
929950660000
Washer, plain (646)
Loading…
↗
13
9046415M2700
Clamp(6h4)
Loading…
↗
14
9033805M1100
Plug(6h4)
Loading…
↗
15
63D825940000
Clamp
Loading…
↗
16
970800601200
Bolt(gh1)
Loading…
↗
18
63D825901000
Wire harness assembly
Loading…
↗
30
9046407M2000
Clamp(6h0)
Loading…
↗
31
6H4821170000
Wire, lead
Loading…
↗
