55BM (2001)
Electrical 2

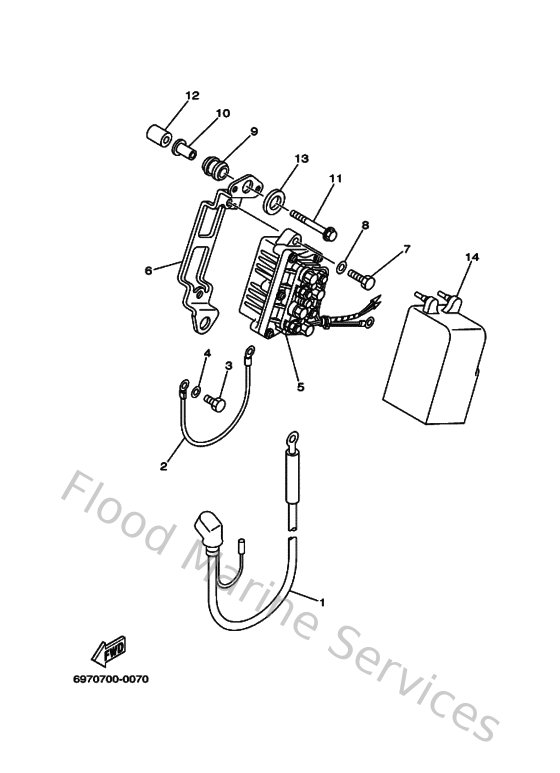

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
697821170000
Wire, lead
Loading…
↗
2
61A819490000
Wire, lead
Loading…
↗
3
970130601200
Bolt(gh1)
Loading…
↗
4
929900660000
Washer, plain (646)
Loading…
↗
5
697819500000
Relay assembly
Loading…
↗
6
697819450000
Plate, switch fitting
Loading…
↗
7
970800602000
Bolt(7u8)
Loading…
↗
8
929950660000
Washer, plain (646)
Loading…
↗
9
6A0823170000
Damper, ignition coil
Loading…
↗
10
903870611900
Collar
Loading…
↗
11
958950604500
Bolt, flange deep recess
Loading…
↗
12
9038706M3800
Collar(697)
Loading…
↗
13
9020112M1600
Washer, plate (679)
Loading…
↗
14
697821540000
Case
Loading…
↗
