60FETO (1997)
Electrical 2

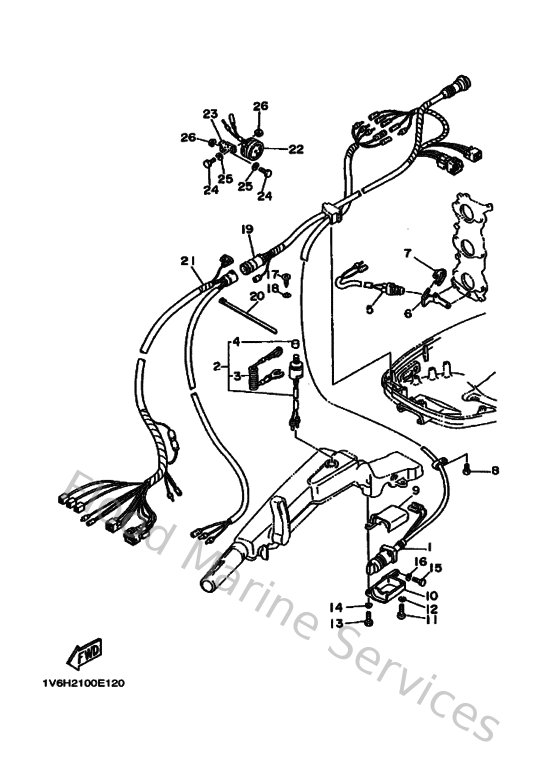

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
6H5825100000
Main Switch assembly
Loading…
↗
2
63D825750000
Engine stop switch assembly
Loading…
↗
3
682825560000
Lanyard, stop switch
Loading…
↗
4
6898257Y0000
Cap
Loading…
↗
5
688825401200
Neutral switch assembly
Loading…
↗
6
6H3825540000
Stay, neutral switch
Loading…
↗
7
663825550100
Plate
Loading…
↗
8
978850601200
Screw, pan head(62j)
Loading…
↗
9
63D8252E014D
Cover, main switch 1
Loading…
↗
10
63D8252F014D
Cover, main switch 2
Loading…
↗
11
978850602500
Screw, pan head(6b0)
Loading…
↗
12
929950610000
Washer(6a1)
Loading…
↗
13
9010106M2700
Bolt
Loading…
↗
15
970950602000
Bolt(7u8)
Loading…
↗
17
9016706M0000
Screw, tapping (6h4)
Loading…
↗
18
929900620000
Ybs66-6 washer, plain
Loading…
↗
19
6H2825860100
Extension, Wire Harness
Loading…
↗
20
9046513M3900
Clamp(6e8)
Loading…
↗
22
688833831100
Buzzer
Loading…
↗
23
6H5833860000
Buzzer Stay
Loading…
↗
24
970130501000
Bolt, hexagon
Loading…
↗
25
929900510000
Ybs67-5 washer, spring
Loading…
↗
26
953800560000
Nut, hexagon (663)
Loading…
↗
