D150NETO (2001)
Electrical 2

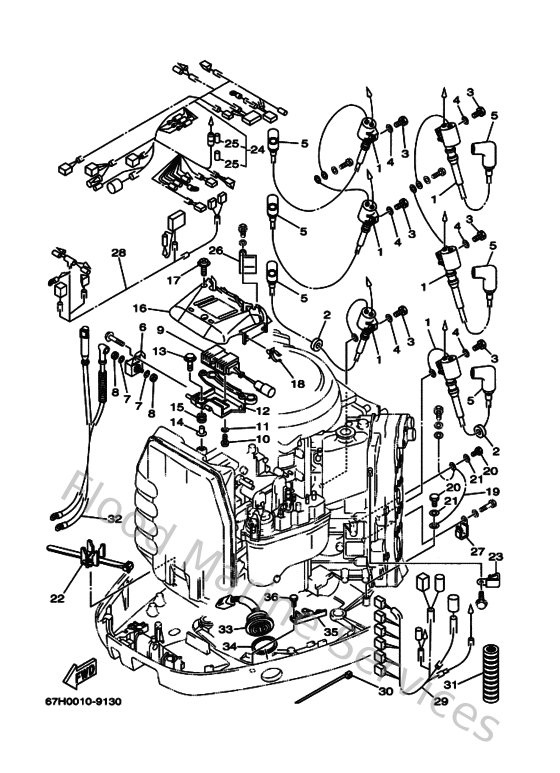

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
61A855700000
Ignition coil assembly
Loading…
↗
2
904802516100
Grommet(656)
Loading…
↗
3
970130602000
Bolt(62y)
Loading…
↗
4
929030660000
Washer, plain (646)
Loading…
↗
5
6E3823702100
Plug cap assembly
Loading…
↗
6
67H819250000
Terminal
Loading…
↗
7
929900610000
Washer(6a1)
Loading…
↗
8
953800670000
Nut
Loading…
↗
9
65L853700000
Resistor assembly
Loading…
↗
10
978850501000
Screw, pan head(62x)
Loading…
↗
11
929950560000
Washer, plain (646)
Loading…
↗
12
65L819150094
Plate, Regulator Fitting
Loading…
↗
13
9011906M6500
Bolt, with washer
Loading…
↗
14
9038706M6000
Collar (6h3)
Loading…
↗
15
9048010M2300
Grommet(6k7)
Loading…
↗
16
65L819160000
Cover, Terminal
Loading…
↗
17
9015906M0300
Screw (6g5)
Loading…
↗
18
9046419M4500
Clamp(65j)
Loading…
↗
19
6E5825311000
Wire, lead
Loading…
↗
20
970800601200
Bolt(gh1)
Loading…
↗
21
929950660000
Washer, plain (646)
Loading…
↗
22
688825940000
Clamp
Loading…
↗
23
9046505M8700
Clamp
Loading…
↗
24
67H825900000
Wire Harness assembly
Loading…
↗
25
5JJ821516000
Fuse
Loading…
↗
26
9046508M8900
Clamp
Loading…
↗
28
67H8259M0000
Wire Harness assembly 2
Loading…
↗
29
67H8259N0000
Wire Harness assembly 3
Loading…
↗
30
9046513M3000
Clamp
Loading…
↗
31
67H835570000
Tube
Loading…
↗
32
67H821050000
Battery Cable
Loading…
↗
33
6R3825630100
Trim & tilt switch assembly
Loading…
↗
34
6E5825870000
Gasket
Loading…
↗
35
6R3836140000
Bracket
Loading…
↗
36
970950601200
Bolt(gh1)
Loading…
↗
