F15AEP (2001)
Electrical 2

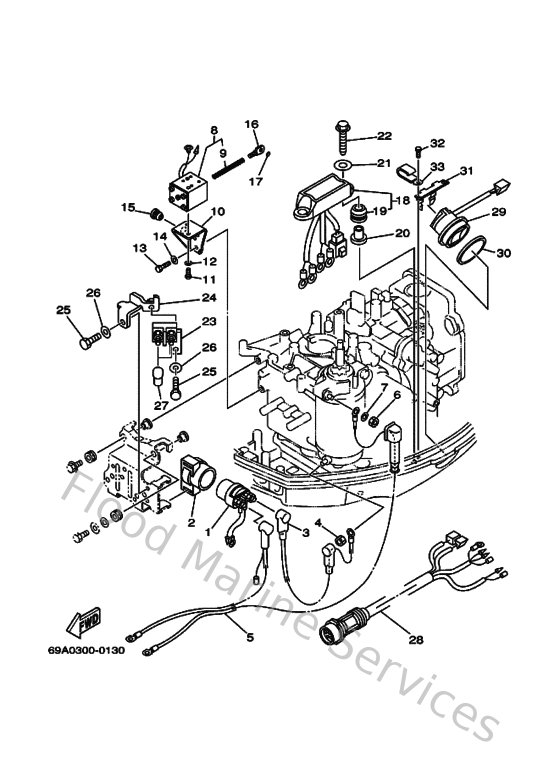

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
6G1819411000
Starter relay
Loading…
↗
2
6G1819520000
Holder, relay
Loading…
↗
3
66M821170000
Wire, lead
Loading…
↗
4
65W8182B0000
Nut, special
Loading…
↗
5
66T82105J100
Battery cable
Loading…
↗
6
953800870000
Nut(661)
Loading…
↗
7
929900860000
Washer, plain (663)
Loading…
↗
8
66M861110000
Coil, solenoid
Loading…
↗
9
66M861160000
Wire, Pull
Loading…
↗
10
66M861120000
Stay Solenoid
Loading…
↗
11
978800500800
Screw, with washer
Loading…
↗
12
929900560000
Washer, plain (646)
Loading…
↗
13
970950601600
Bolt, hexagon deep recess
Loading…
↗
14
929950660000
Washer, plain (646)
Loading…
↗
15
9048010M1300
Grommet (6e0)
Loading…
↗
16
66M861170000
Hook, wire pull
Loading…
↗
17
932100326100
O-ring (663)
Loading…
↗
18
69A819500000
Relay assembly
Loading…
↗
19
9048009M1200
Grommet (6a0)
Loading…
↗
20
9038706M0300
Collar (676)
Loading…
↗
21
902010641600
Washer, plate(663)
Loading…
↗
22
9010906MA200
Bolt
Loading…
↗
23
6H5819200000
Terminal assembly
Loading…
↗
24
69A819290000
Bracket Terminal
Loading…
↗
25
970950601200
Bolt(gh1)
Loading…
↗
27
6G5821191000
Cover, lead wire
Loading…
↗
28
69A825900000
Wire Harness assembly
Loading…
↗
29
63D825631000
Trim & tilt switch assembly
Loading…
↗
30
6E5825870000
Gasket
Loading…
↗
31
69A836140000
Bracket
Loading…
↗
32
9010906M8600
Bolt
Loading…
↗
33
9046506M8800
Clamp
Loading…
↗
