F20AM (1999)
Electrical 2

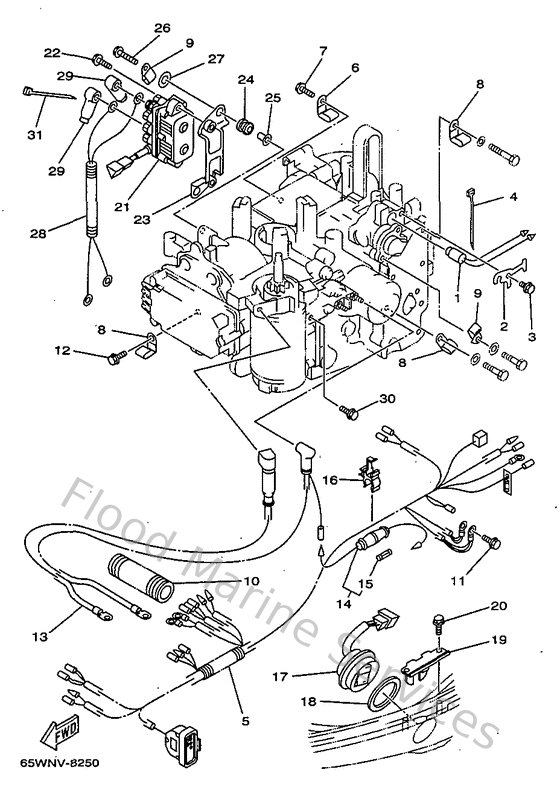

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
65W857900000
Thermosensor assembly
Loading…
↗
2
65W857570000
Retainer
Loading…
↗
3
975950651200
Bolt, hexagon w/w deep recess
Loading…
↗
4
904651009800
Clamp
Loading…
↗
5
65W825901000
Wire Harness assembly (7P)
Loading…
↗
6
9046508M0800
Clamp (6e5)
Loading…
↗
7
975950651600
Bolt, with washer(6r6)
Loading…
↗
9
9046508M5100
Clamp
Loading…
↗
10
6N7835570000
Tube
Loading…
↗
12
975950551600
Bolt, with washer
Loading…
↗
13
66T82105J100
Battery cable
Loading…
↗
14
6G8821500000
Fuse holder assembly
Loading…
↗
15
682821510100
Fuse
Loading…
↗
16
6G5821520000
Holder, fuse
Loading…
↗
17
6H1825631000
Trim & tilt switch assembly
Loading…
↗
18
6E5825870000
Gasket
Loading…
↗
19
62Y836140000
Bracket
Loading…
↗
20
9010906M8600
Bolt
Loading…
↗
21
61A819500000
Relay assembly
Loading…
↗
22
975750652000
Bolt, hexagon w/w deep recess
Loading…
↗
23
65W819480000
Bracket
Loading…
↗
24
6A0823170000
Damper, ignition coil
Loading…
↗
25
624425420000
Collar
Loading…
↗
26
958950603000
Bolt, flange deep recess
Loading…
↗
27
9020112M1600
Washer, plate (679)
Loading…
↗
28
65W819490000
Wire Lead
Loading…
↗
29
6G5821191000
Cover, lead wire
Loading…
↗
30
975750651600
Bolt, hexagon w/w deep recess
Loading…
↗
31
9046511M1000
Clamp
Loading…
↗
