F20AM (2001)
Electrical 2

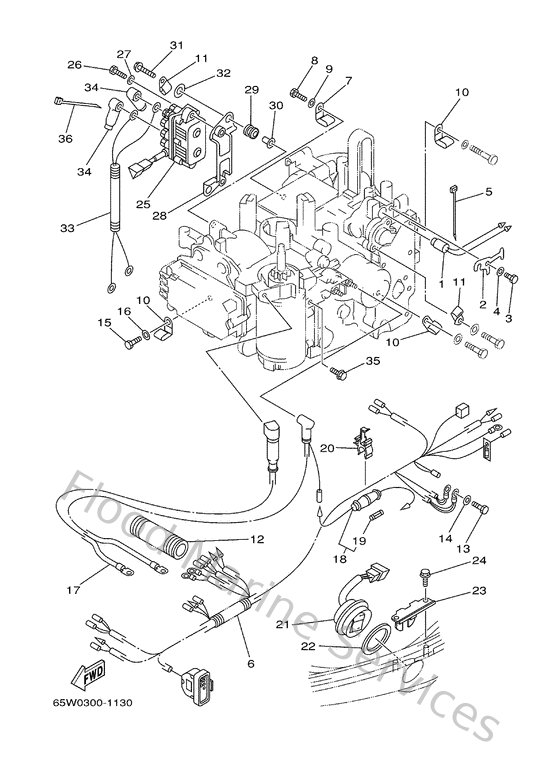

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
65W857900000
Thermosensor assembly
Loading…
↗
2
65W857570000
Retainer
Loading…
↗
3
970950601200
Bolt(gh1)
Loading…
↗
4
929950660000
Washer, plain (646)
Loading…
↗
5
9046511M1000
Clamp
Loading…
↗
10
9046508M0800
Clamp (6e5)
Loading…
↗
11
9046506M8800
Clamp
Loading…
↗
12
6N7835570000
Tube
Loading…
↗
13
970950601600
Bolt, hexagon deep recess
Loading…
↗
15
970950501600
Bolt(6a1)
Loading…
↗
16
929950560000
Washer, plain (646)
Loading…
↗
