Yamaha Outboard Parts - Electrical 2 - FL115AET (2000) | Flood Marine

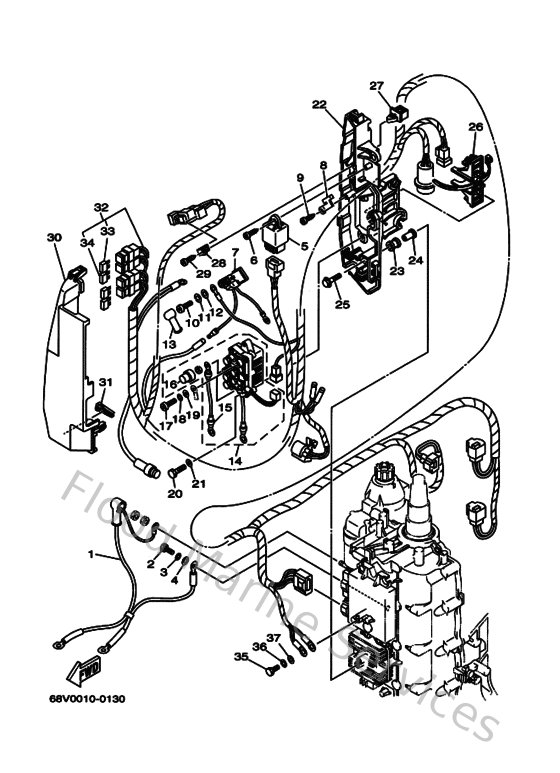

Diagram: Electrical 2

Diagram

Parts List

Reference
Description
Price


1
68V821050000
Battery cable
Loading…

↗
2
970130602000
Bolt(62y)
Loading…

↗
3
929030610000
Washer(6a1)
Loading…

↗
4
929900660000
Washer, plain (646)
Loading…

↗
5
68V819500000
Relay assembly
Loading…

↗
6
977806062500
Screw, tapping(65j)
Loading…

↗
7
68V8194A0000
Relay
Loading…

↗
8
68V819530000
Stay, relay
Loading…

↗
9
977806062000
Screw, tapping(6k8)
Loading…

↗
10
978800601000
Screw pan head
Loading…

↗
11
929900610000
Washer(6a1)
Loading…

↗
13
6G5821190000
Cover, lead wire
Loading…

↗
14
68V8195B0100
Relay assembly
Loading…

↗
15
68V819490000
Wire, lead
Loading…

↗
16
68V825320000
Cap
Loading…

↗
21
929030660000
Washer, plain (646)
Loading…

↗
22
68V819480000
Brkt. Cover Set
Loading…

↗
23
6A0823170000
Damper, ignition coil
Loading…

↗
24
903870611900
Collar
Loading…

↗
25
9011906M5900
Bolt, with washer
Loading…

↗
26
68V825940000
Clamp
Loading…

↗
27
9046412M5800
Clamp
Loading…

↗
28
68V855480000
Holder
Loading…

↗
29
977806052000
Screw, tapping(6k8)
Loading…

↗
30
68V819420000
Cover
Loading…

↗
31
67F2812A0000
Puller, fuse
Loading…

↗
32
68V825900000
Wire Harness assembly
Loading…

↗
33
67F821510000
Fuse
Loading…

↗
34
5JJ821516000
Fuse
Loading…

↗
35
970950602000
Bolt(7u8)
Loading…

↗
36
929950610000
Washer(6a1)
Loading…

↗
37
929950660000
Washer, plain (646)
Loading…

↗
