FT9.9AMH (2001)
Electrical 2

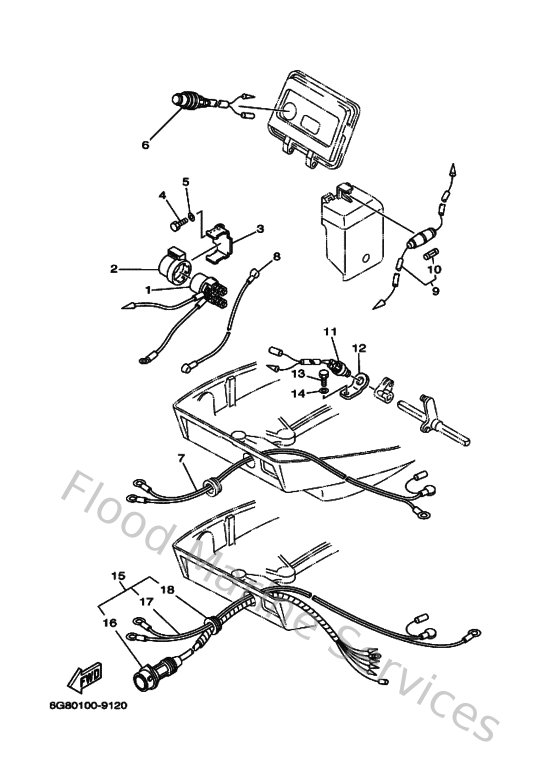

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
6J0819411000
Relay, starter
Loading…
↗
2
6G1819520000
Holder, relay
Loading…
↗
3
6G8819530000
Stay, relay
Loading…
↗
4
970950601200
Bolt(gh1)
Loading…
↗
5
929900660000
Washer, plain (646)
Loading…
↗
8
6G8821170000
Wire, lead
Loading…
↗
9
6G8821500000
Fuse holder assembly
Loading…
↗
10
663821510000
Fuse
Loading…
↗
11
688825401200
Neutral switch assembly
Loading…
↗
12
6G8825540000
Stay Neutral Switch
Loading…
↗
15
6G8825800000
Wire harness assembly
Loading…
↗
16
6G8825900000
Wire Harness assembly
Loading…
↗
17
6G8821050100
Battery Cable
Loading…
↗
18
6G8427245000
Grommet
Loading…
↗
