L130BETOL (2001)
Electrical 2

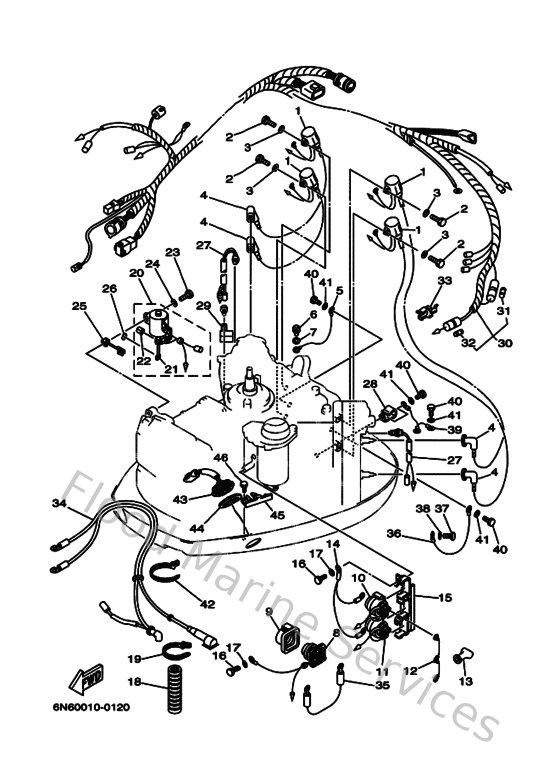

Diagram: Electrical 2
Parts List
Reference
Description
Price
1
6R3855700100
Ignition coil assembly
Loading…
↗
2
970950602000
Bolt(7u8)
Loading…
↗
3
929950660000
Washer, plain (646)
Loading…
↗
4
6G1823702100
Plug cap assembly
Loading…
↗
5
662825190000
Wire, earth lead
Loading…
↗
6
970800601200
Bolt(gh1)
Loading…
↗
8
61A819410000
Starter relay assembly
Loading…
↗
9
689819521000
Holder, starter relay
Loading…
↗
10
6E5819500000
Relay assembly
Loading…
↗
11
6E58195A0000
Relay assembly
Loading…
↗
12
6G5871491000
Connector
Loading…
↗
13
6G5821190000
Cover, lead wire
Loading…
↗
14
6E5821160000
Wire, minus lead
Loading…
↗
15
6E5819482200
Bracket
Loading…
↗
16
970950601600
Bolt, hexagon deep recess
Loading…
↗
18
6N7835570000
Tube
Loading…
↗
19
9046513M3000
Clamp
Loading…
↗
20
6N7861100000
Solenoid
Loading…
↗
21
6N7861160000
Wire, pull
Loading…
↗
22
916093001000
Pin, spring (663)
Loading…
↗
23
970800603000
Bolt(jf7)
Loading…
↗
25
6N7861120000
Stay, solenoid
Loading…
↗
26
932100326100
O-ring (663)
Loading…
↗
27
688825601000
Thermo switch assembly
Loading…
↗
28
9046505M8700
Clamp
Loading…
↗
29
9046508M8900
Clamp
Loading…
↗
30
6N7825901400
Wire Harness assembly
Loading…
↗
31
682821510100
Fuse
Loading…
↗
32
705821510000
Fuse (30a)
Loading…
↗
33
6G5821520000
Holder, fuse
Loading…
↗
34
6N7821050200
Battery cable
Loading…
↗
35
6E5821170100
Wire, lead
Loading…
↗
36
6R3825190000
Wire, earth lead
Loading…
↗
39
6E5825311000
Wire, lead
Loading…
↗
40
970950601200
Bolt(gh1)
Loading…
↗
43
6R3825630000
Trim & tilt switch assembly
Loading…
↗
44
6E5825870000
Gasket
Loading…
↗
45
6R3836140000
Bracket
Loading…
↗
