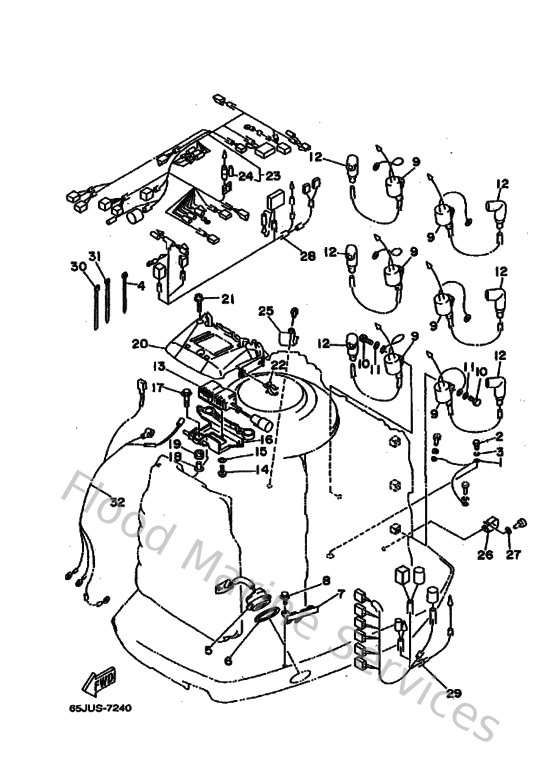

Diagram: Electrical 2

Diagram

Parts List

Reference
Description
Price


1
61A825310000
Wire, lead
Loading…

↗
2
970130601200
Bolt(gh1)
Loading…

↗
3
929950610000
Washer(6a1)
Loading…

↗
4
904651009800
Clamp
Loading…

↗
5
61A825630000
Trim & tilt switch assembly
Loading…

↗
6
6E5825870000
Gasket
Loading…

↗
7
61A836140000
Bracket
Loading…

↗
8
970950601200
Bolt(gh1)
Loading…

↗
9
61A855700000
Ignition coil assembly
Loading…

↗
10
970130602000
Bolt(62y)
Loading…

↗
11
929900660000
Washer, plain (646)
Loading…

↗
12
6E3823702100
Plug cap assembly
Loading…

↗
13
65L853700000
Resistor assembly
Loading…

↗
14
978850501000
Screw, pan head(62x)
Loading…

↗
15
929900560000
Washer, plain (646)
Loading…

↗
16
65L819150094
Plate, Regulator Fitting
Loading…

↗
17
9011906M6500
Bolt, with washer
Loading…

↗
18
9038706M6000
Collar (6h3)
Loading…

↗
19
9048010M2300
Grommet(6k7)
Loading…

↗
20
65L819160000
Cover, Terminal
Loading…

↗
21
9015906M0300
Screw (6g5)
Loading…

↗
22
9046419M4500
Clamp(65j)
Loading…

↗
23
65L825900000
Wire Harness assembly
Loading…

↗
24
682821510000
Fuse
Loading…

↗
25
9046510M1400
Clamp
Loading…

↗
26
9046508M3300
Clamp(6t4)
Loading…

↗
28
65L8259M0000
Wire Harness assembly 2
Loading…

↗
29
65L8259N2000
Wire Harness Assembly 3
Loading…

↗
30
9046511M5200
Clamp(6e7)
Loading…

↗
31
9046513M3600
Clamp(6h4)
Loading…

↗
32
61A821050000
Battery cable
Loading…

↗
