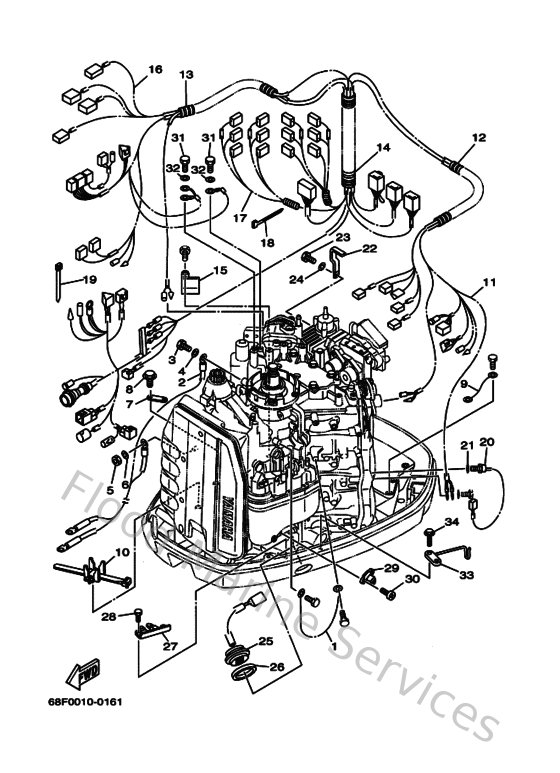

Diagram: Electrical 2

Diagram

Parts List

Reference
Description
Price


1
6H2819491100
Wire, lead
Loading…

↗
2
68F821050000
Battery cable
Loading…

↗
3
970950801600
Bolt, hexagon deep recess
Loading…

↗
4
929900860000
Washer, plain (663)
Loading…

↗
5
953330860000
Nut(6l2)
Loading…

↗
6
929030810000
Ybs67-8 washer, spring
Loading…

↗
7
6E5825880000
Plate
Loading…

↗
8
958950602000
Bolt, flange(jk3)
Loading…

↗
9
6E5825311000
Wire, lead
Loading…

↗
10
688825940000
Clamp
Loading…

↗
12
9044624MF600
Hose
Loading…

↗
13
9044624MF700
Hose
Loading…

↗
15
9046508M8900
Clamp
Loading…

↗
16
68F8259M0000
Wire Harness assembly 2
Loading…

↗
17
68F8259N0000
Wire Harness assembly 3
Loading…

↗
18
904651009800
Clamp
Loading…

↗
19
9046511M5200
Clamp(6e7)
Loading…

↗
20
61A857900000
Thermosensor assembly
Loading…

↗
21
929901060000
Washer, plate
Loading…

↗
23
970800601200
Bolt(gh1)
Loading…

↗
24
929950610000
Washer(6a1)
Loading…

↗
25
6R3825630000
Trim & tilt switch assembly
Loading…

↗
26
6E5825870000
Gasket
Loading…

↗
27
6R3836140000
Bracket
Loading…

↗
28
9010906M8000
Bolt
Loading…

↗
29
67H823800000
Sensor, pressure
Loading…

↗
30
985800652000
Screw pan head
Loading…

↗
31
970950601400
Bolt(gj3)
Loading…

↗
32
929900660000
Washer, plain (646)
Loading…

↗
33
6K7825880000
Plate
Loading…

↗
