150LETOL (2001)
Electrical 3

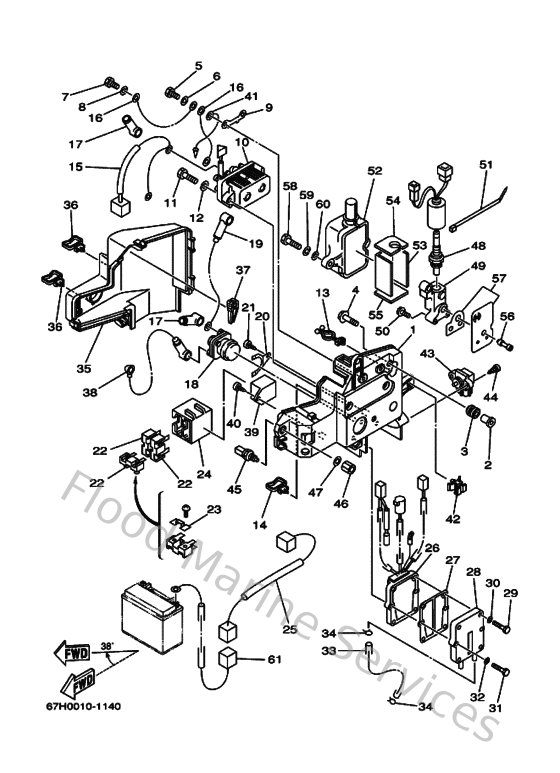

Diagram: Electrical 3
Parts List
Reference
Description
Price
1
67H819480000
Bracket
Loading…
↗
2
624425420000
Collar
Loading…
↗
3
6A0823170000
Damper, ignition coil
Loading…
↗
4
9011906M9500
Bolt, with washer
Loading…
↗
5
970950601200
Bolt(gh1)
Loading…
↗
6
929950660000
Washer, plain (646)
Loading…
↗
7
970800601200
Bolt(gh1)
Loading…
↗
9
61A871490000
Connector
Loading…
↗
10
61A819500100
Relay assembly
Loading…
↗
11
970130603000
Bolt
Loading…
↗
12
929030660000
Washer, plain (646)
Loading…
↗
13
9046418M4600
Clamp(65j)
Loading…
↗
14
904642319900
Clamp(4hm)
Loading…
↗
15
61A819491000
Wire, lead
Loading…
↗
16
61A819490000
Wire, lead
Loading…
↗
17
6G5821190000
Cover, lead wire
Loading…
↗
18
61A819410000
Starter relay assembly
Loading…
↗
19
67H821171000
Wire, Lead
Loading…
↗
20
61A819520000
Holder, relay
Loading…
↗
21
977805061200
Screw, tapping(61a)
Loading…
↗
22
61A821500000
Fuse holder assembly
Loading…
↗
23
61A821510000
Fuse(12v-80a)
Loading…
↗
24
61A821530000
Stay, fuse holder
Loading…
↗
25
66K819491000
Wire, Lead
Loading…
↗
26
67H819600000
Rectifier & Regulator assembly
Loading…
↗
27
69J81975A000
Plate, rectifier fitting
Loading…
↗
28
61A81972001S
Cover, rectifier
Loading…
↗
29
970130602500
Bolt(62y)
Loading…
↗
30
929900660000
Washer, plain (646)
Loading…
↗
33
90445092K100
Hose (l420)
Loading…
↗
34
904670800400
Clip, pipe 6162435600
Loading…
↗
35
67H819420000
Cover
Loading…
↗
37
67F2812A0000
Puller, fuse
Loading…
↗
38
67H821170000
Wire, Lead
Loading…
↗
39
65L819500000
Relay assembly
Loading…
↗
40
977806062500
Screw, tapping(65j)
Loading…
↗
41
66K825190000
Wire, Earth Lead
Loading…
↗
42
9046409M4700
Clamp(65j)
Loading…
↗
43
67H823800000
Sensor, pressure
Loading…
↗
45
65L858860000
Thermosensor
Loading…
↗
46
9017012M3600
Nut
Loading…
↗
47
9020112M3400
Washer (692)
Loading…
↗
48
67H8592A0100
Sensor, Oxygen
Loading…
↗
49
65L113950000
Holder
Loading…
↗
50
9011906M7400
Bolt, with washer(63m)
Loading…
↗
51
9046513M3000
Clamp
Loading…
↗
52
65L858320000
Case, under
Loading…
↗
53
65L113540000
Gasket
Loading…
↗
54
65L1131N0000
Gasket, holder
Loading…
↗
55
65L113960000
Gasket, holder
Loading…
↗
56
65L113531100
Joint
Loading…
↗
57
68FW11350000
Seal, cylinder
Loading…
↗
58
970950603000
Bolt(jf7)
Loading…
↗
59
929950610000
Washer(6a1)
Loading…
↗
61
68F819490000
Wire, lead
Loading…
↗
