225AETOL (1987)
Electrical 3

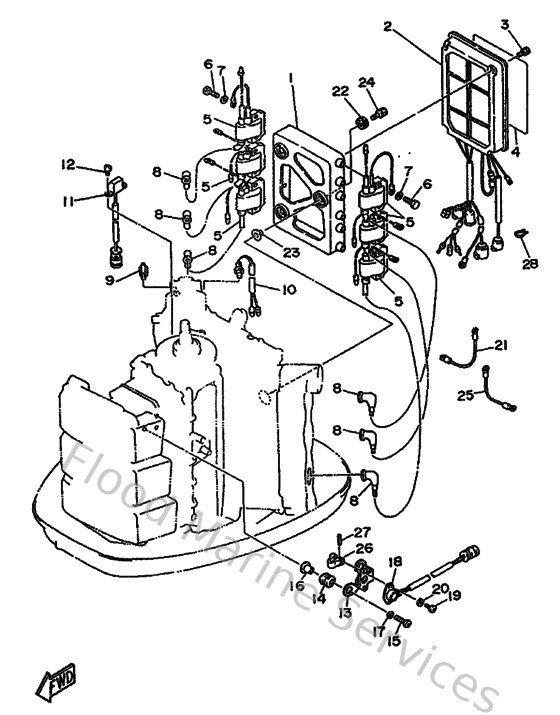

Diagram: Electrical 3
Parts List
Reference
Description
Price
5
6E5855701000
Ignition coil assembly
Loading…
↗
6
973130603000
Bolt
Loading…
↗
7
929030660000
Washer, plain (646)
Loading…
↗
8
6E3823702000
Plug cap assembly
Loading…
↗
9
6G7857800000
Sensor, Knock
Loading…
↗
10
6G7857900100
Thermosensor Assembly
Loading…
↗
12
978030501200
Screw,pan head (646)
Loading…
↗
14
9048010M2300
Grommet(6k7)
Loading…
↗
15
978030502500
Screw, panhead (a93)
Loading…
↗
16
9038705M0000
Collar(6k7)
Loading…
↗
17
9020105M0300
Washer, plate(6k7)
Loading…
↗
18
6K7858850300
Throttle Sensr.assembly
Loading…
↗
20
929030560000
Washer, plain (646)
Loading…
↗
21
662825190000
Wire, earth lead
Loading…
↗
22
9048009M1200
Grommet (6a0)
Loading…
↗
23
9038706M0300
Collar (676)
Loading…
↗
24
9011906M0800
Bolt, with washer
Loading…
↗
25
6G0825190000
Wire, earth lead
Loading…
↗
26
6K7145730000
Lever
Loading…
↗
27
916903001600
Pin, spring
Loading…
↗
28
9046408M0700
Clamp
Loading…
↗
