50HM (2000)
Electrical 3

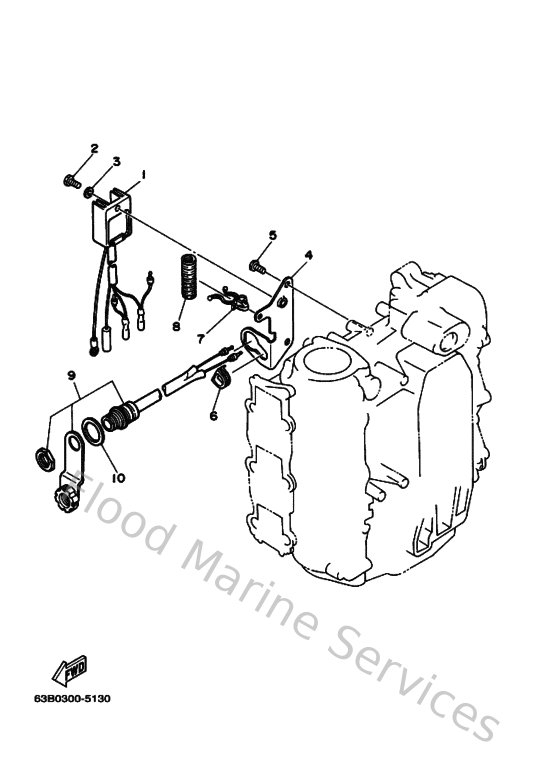

Diagram: Electrical 3
Parts List
Reference
Description
Price
1
6J8819600000
Rectifier & regulator assembly
Loading…
↗
2
970950601200
Bolt(gh1)
Loading…
↗
3
929950660000
Washer, plain (646)
Loading…
↗
4
6H4819750200
Plate, rectifier fitting
Loading…
↗
5
970800601200
Bolt(gh1)
Loading…
↗
6
6F5819220000
Grommet 1
Loading…
↗
7
9046412M3500
Clamp(6h4)
Loading…
↗
8
9044014M0000
Pipe(6h4)
Loading…
↗
9
682843810000
2p concent 1
Loading…
↗
10
9020226M4500
Washer, plate(6h4)
Loading…
↗
