F100AET (1999)
Electrical 3

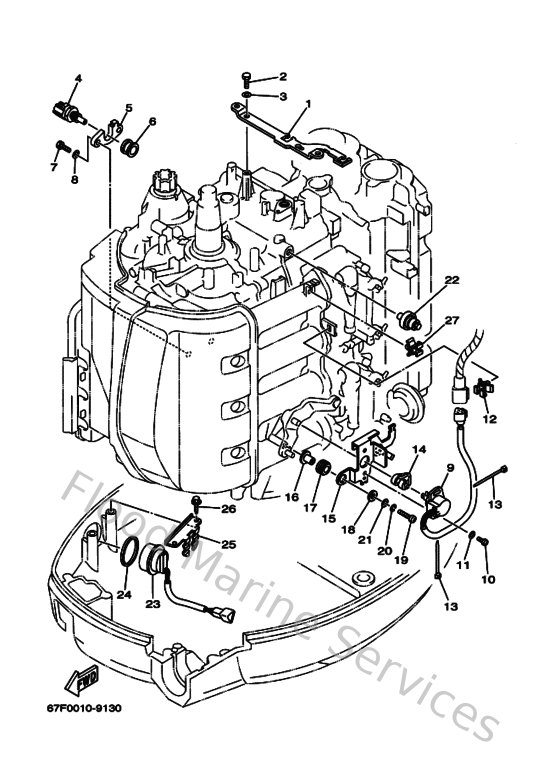

Diagram: Electrical 3
Parts List
Reference
Description
Price
1
67F8132G0000
Plate
Loading…
↗
2
970950601600
Bolt, hexagon deep recess
Loading…
↗
3
929950660000
Washer, plain (646)
Loading…
↗
4
67F857900000
Thermosensor assembly
Loading…
↗
5
67F857570000
Retainer
Loading…
↗
6
67F857530000
Gasket, sender unit
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
9
61A858850000
Throttle sensor assembly
Loading…
↗
10
978850501000
Screw, pan head(62x)
Loading…
↗
11
929950560000
Washer, plain (646)
Loading…
↗
12
9046409M4700
Clamp(65j)
Loading…
↗
13
904651009800
Clamp
Loading…
↗
14
6K7145730000
Lever
Loading…
↗
15
67F836350000
Bracket
Loading…
↗
16
9038705M0000
Collar(6k7)
Loading…
↗
17
9048010M2300
Grommet(6k7)
Loading…
↗
18
9020105M0300
Washer, plate(6k7)
Loading…
↗
19
978850502500
Screw, pan head(62j)
Loading…
↗
20
929950510000
Ybs67-5 washer, spring
Loading…
↗
21
929900560000
Washer, plain (646)
Loading…
↗
22
67F825040000
Oil pressure switch assembly
Loading…
↗
23
63D825631000
Trim & tilt switch assembly
Loading…
↗
24
6E5825870000
Gasket
Loading…
↗
25
67F836140000
Bracket
Loading…
↗
26
9010906M8600
Bolt
Loading…
↗
