F20AM (1999)
Electrical 3

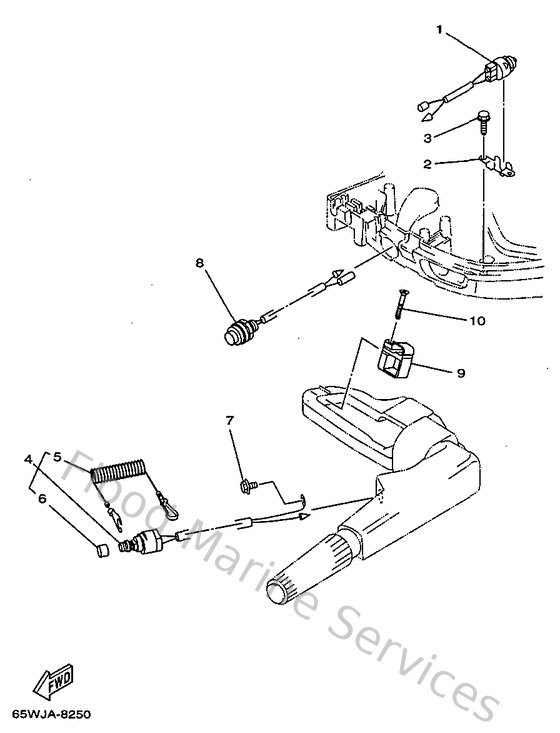

Diagram: Electrical 3
Parts List
Reference
Description
Price
1
6H3825400000
Neutral switch assembly
Loading…
↗
2
6J8825540000
Stay, neutral switch
Loading…
↗
3
9010906M8600
Bolt
Loading…
↗
4
65W825750000
Engine stop switch assembly
Loading…
↗
5
682825560000
Lanyard, stop switch
Loading…
↗
6
6898257Y0000
Cap
Loading…
↗
7
975950651200
Bolt, hexagon w/w deep recess
Loading…
↗
8
65W818700000
Starting switch assembly
Loading…
↗
9
65W825940000
Clamp
Loading…
↗
10
9016106M0000
Screw, tapping(6e7)
Loading…
↗
