FT9.9AMH (2001)
Electrical 3

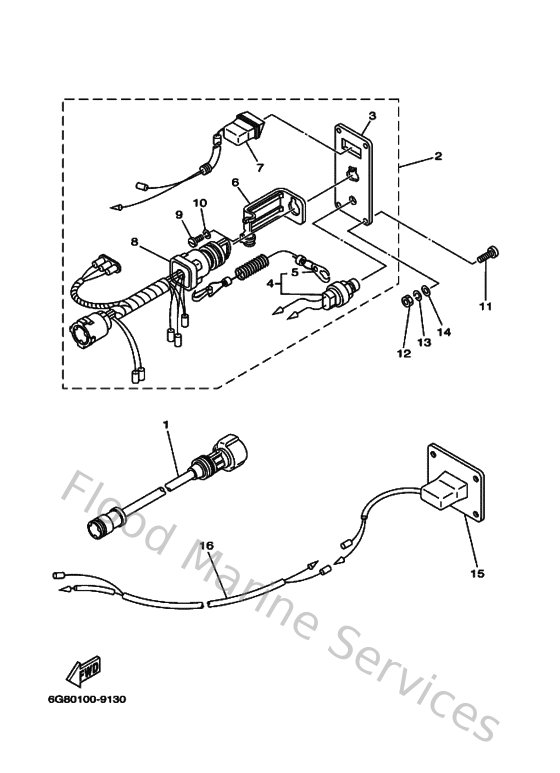

Diagram: Electrical 3
Parts List
Reference
Description
Price
1
688825865000
Extension, wire harness
Loading…
↗
2
6G8825700200
Panel Switch assembly
Loading…
↗
3
6G8825710100
Panel, Switch
Loading…
↗
4
688825750200
Engine stop switch assembly
Loading…
↗
5
682825560000
Lanyard, stop switch
Loading…
↗
6
663825810100
Stay, cord clamp
Loading…
↗
7
6G8835820100
Pilot Light assembly
Loading…
↗
8
6G8825100200
Main Switch assembly
Loading…
↗
9
989030400800
Screw, bind (705)
Loading…
↗
10
929030410000
Ybs67-4 washer, spring
Loading…
↗
11
9014905M0500
Screw(6k0)
Loading…
↗
12
953800560000
Nut, hexagon (663)
Loading…
↗
13
929900510000
Ybs67-5 washer, spring
Loading…
↗
14
929900560000
Washer, plain (646)
Loading…
↗
15
6G8835300000
Pilot Light assembly
Loading…
↗
16
6G8825410000
Wire, Lead
Loading…
↗
