L250AETO (2001)
Electrical 3

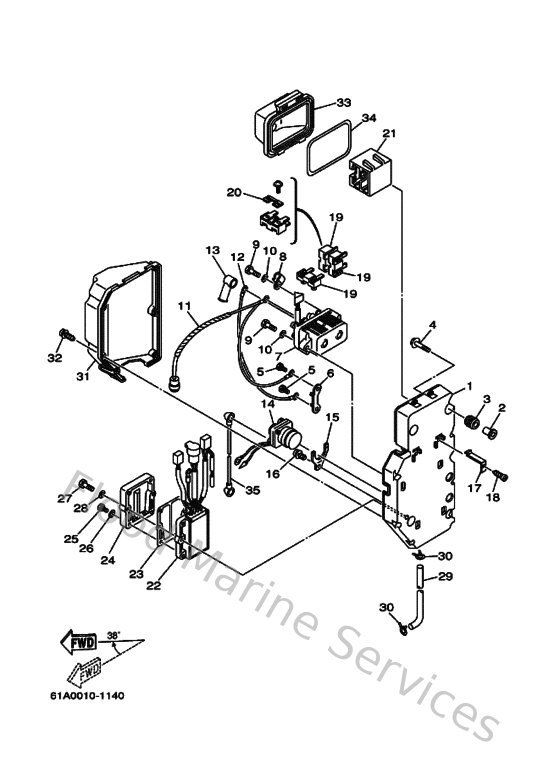

Diagram: Electrical 3
Parts List
Reference
Description
Price
1
61A819480000
Bracket
Loading…
↗
2
624425420000
Collar
Loading…
↗
3
6A0823170000
Damper, ignition coil
Loading…
↗
4
9011906M9500
Bolt, with washer
Loading…
↗
5
970130601400
Bolt(gj3)
Loading…
↗
6
61A871490000
Connector
Loading…
↗
7
61A819500000
Relay assembly
Loading…
↗
8
9046506M8600
Clamp
Loading…
↗
9
970130603000
Bolt
Loading…
↗
10
929030660000
Washer, plain (646)
Loading…
↗
11
61A819491000
Wire, lead
Loading…
↗
12
6H2819491100
Wire, lead
Loading…
↗
13
6G5821190000
Cover, lead wire
Loading…
↗
14
61A819410000
Starter relay assembly
Loading…
↗
15
61A819520000
Holder, relay
Loading…
↗
16
977805061200
Screw, tapping(61a)
Loading…
↗
17
61A821710000
Stay, fuse box
Loading…
↗
19
61A821500000
Fuse holder assembly
Loading…
↗
20
61A821510000
Fuse(12v-80a)
Loading…
↗
21
61A821530000
Stay, fuse holder
Loading…
↗
22
61A819600400
Rectifier & regulator assembly
Loading…
↗
23
61A81975A000
Plate, rectifier fitting
Loading…
↗
24
61A81972001S
Cover, rectifier
Loading…
↗
25
970130602500
Bolt(62y)
Loading…
↗
26
929900660000
Washer, plain (646)
Loading…
↗
29
6H4243110000
Pipe 1
Loading…
↗
30
904670800400
Clip, pipe 6162435600
Loading…
↗
31
61A819420000
Cover
Loading…
↗
32
9016905M0000
Screw truss head tapping
Loading…
↗
33
61A821540100
Case
Loading…
↗
34
61A821760000
Damper
Loading…
↗
35
61A821170000
Wire, lead
Loading…
↗
