50HM (1997)
Electrical 3 (TILLER HANDLE)

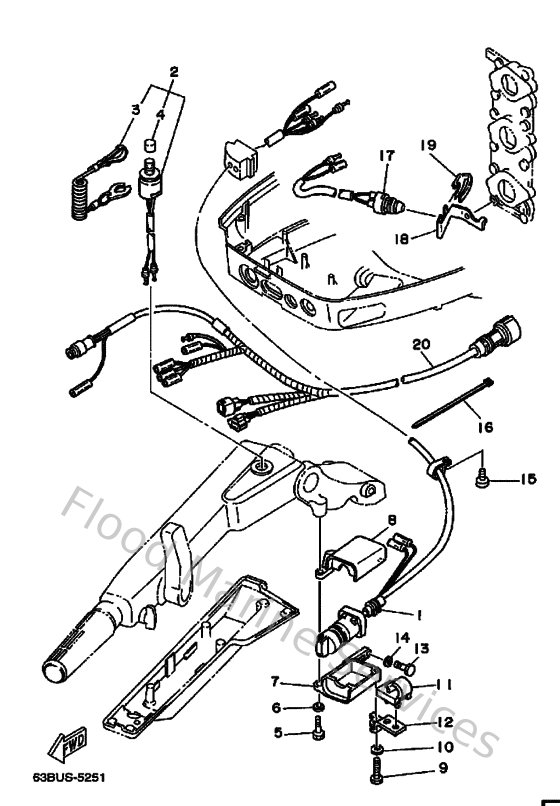

Diagram: Electrical 3 (TILLER HANDLE)
Parts List
Reference
Description
Price
1
6H5825100000
Main Switch assembly
Loading…
↗
2
63D825750000
Engine stop switch assembly
Loading…
↗
3
682825560000
Lanyard, stop switch
Loading…
↗
4
6898257Y0000
Cap
Loading…
↗
5
970950602500
Bolt
Loading…
↗
6
929950610000
Washer(6a1)
Loading…
↗
7
63D8252F014D
Cover, main switch 2
Loading…
↗
8
63D8252E014D
Cover, main switch 1
Loading…
↗
9
970800603000
Bolt(jf7)
Loading…
↗
10
929900660000
Washer, plain (646)
Loading…
↗
11
63D243670000
Clamp, fuel pipe 2
Loading…
↗
12
63D243640000
Stay
Loading…
↗
13
970950602000
Bolt(7u8)
Loading…
↗
15
978850601200
Screw, pan head(62j)
Loading…
↗
16
9046513M3600
Clamp(6h4)
Loading…
↗
17
688825401100
Neutral switch assembly
Loading…
↗
18
63D825540000
Stay Neutral Switch
Loading…
↗
19
663825550100
Plate
Loading…
↗
20
63D825860000
Extension, Wire Harness
Loading…
↗
