L225FETO (2001)
Electrical 4

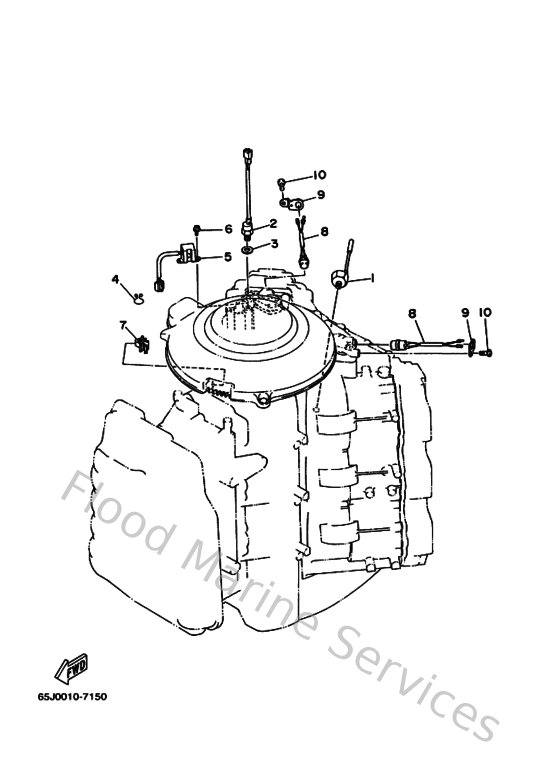

Diagram: Electrical 4
Parts List
Reference
Description
Price
1
61A857800000
Sensor, knock
Loading…
↗
2
61A857900000
Thermosensor assembly
Loading…
↗
3
929901060000
Washer, plate
Loading…
↗
4
9046412M4800
Clamp
Loading…
↗
5
61A858950000
Crank position sender
Loading…
↗
6
985800501200
Screw,pan head (646)
Loading…
↗
7
9046409M4700
Clamp(65j)
Loading…
↗
8
61A825600000
Thermo switch assembly
Loading…
↗
9
61A8252U0000
Cover
Loading…
↗
10
970800601200
Bolt(gh1)
Loading…
↗
