L250AETO (2000)
Electrical 4

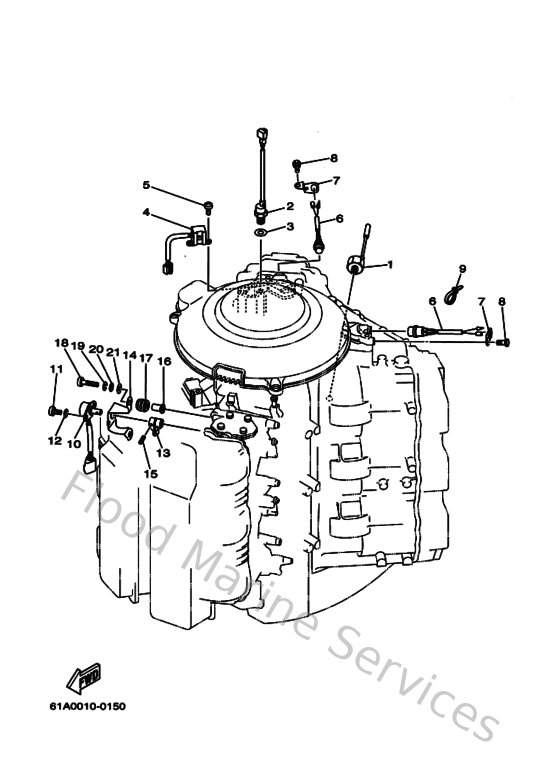

Diagram: Electrical 4
Parts List
Reference
Description
Price
1
61A857800000
Sensor, knock
Loading…
↗
2
61A857900000
Thermosensor assembly
Loading…
↗
3
929901060000
Washer, plate
Loading…
↗
4
61A858950000
Crank position sender
Loading…
↗
5
978850501200
Screw,pan head (646)
Loading…
↗
6
61A825600000
Thermo switch assembly
Loading…
↗
7
61A8252U0000
Cover
Loading…
↗
8
970800601200
Bolt(gh1)
Loading…
↗
9
9046511M1000
Clamp
Loading…
↗
10
6X2858851000
Throttle sensor assembly
Loading…
↗
11
978850501000
Screw, pan head(62x)
Loading…
↗
12
929950560000
Washer, plain (646)
Loading…
↗
13
6K7145730000
Lever
Loading…
↗
14
61A858860000
Bracket
Loading…
↗
15
916903001600
Pin, spring
Loading…
↗
16
9038705M0000
Collar(6k7)
Loading…
↗
17
9048010M2300
Grommet(6k7)
Loading…
↗
18
978850502500
Screw, pan head(62j)
Loading…
↗
19
929950510000
Ybs67-5 washer, spring
Loading…
↗
21
9020105M0300
Washer, plate(6k7)
Loading…
↗
