RIGGING - STEERING (2019)
FITTING KIT 1

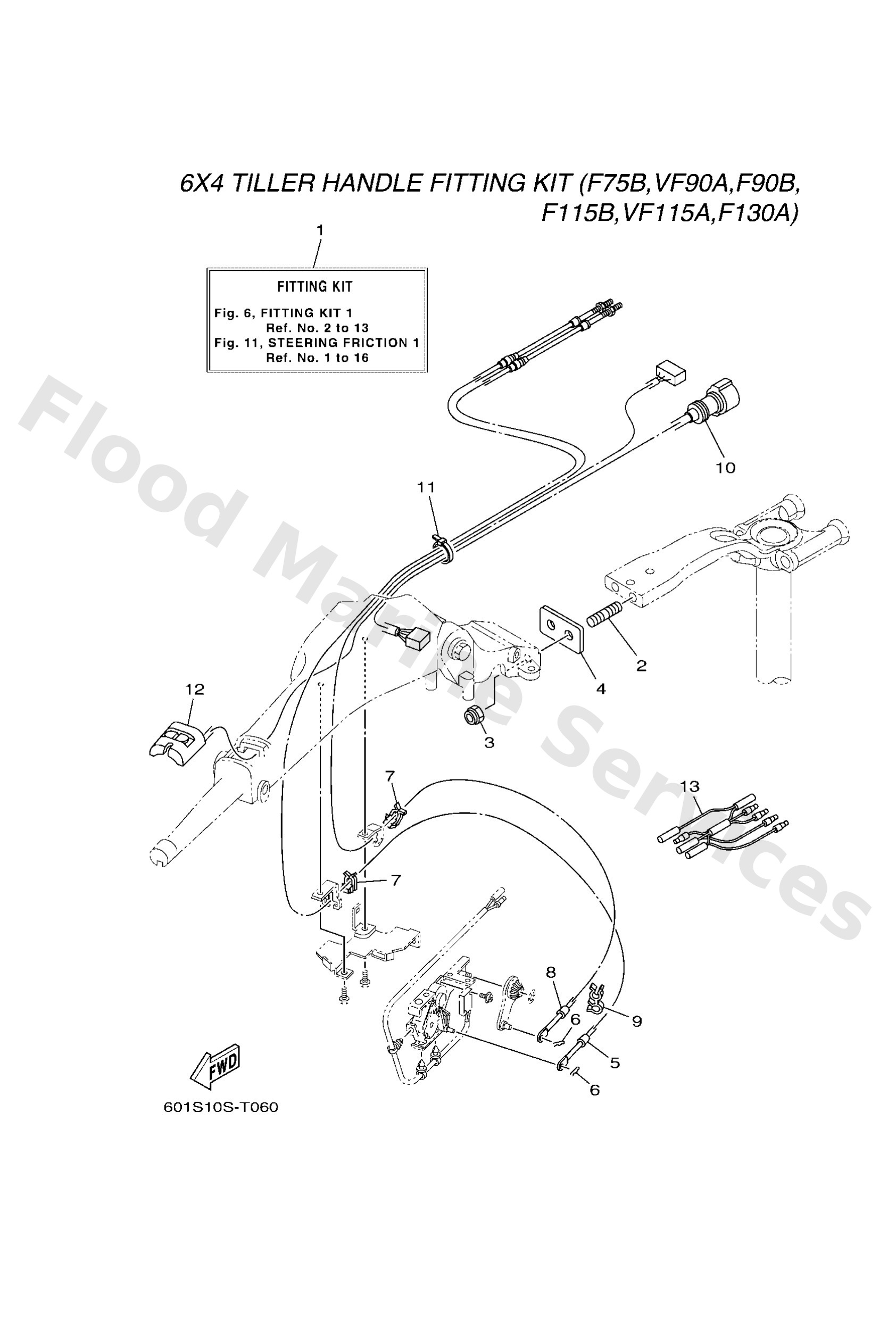

Diagram: FITTING KIT 1
Parts List
Reference
Description
Price
1
6X442102J1
LM FOR USA,CAN
-
Loading…
↗
1
6X442102C1
LM FOR EUR,OCE
Tiller kit f115lb/(l)f115xb
Loading…
↗
1
6X442102H1
LM FOR USA,CAN
-
Loading…
↗
2
9011610063
Bolt, stud
Loading…
↗
3
9018510027
Nut, self-locking
Loading…
↗
4
6EK4212100
Bracket
Loading…
↗
5
6EK4832100
Cable
Loading…
↗
6
9046810005
Pin, hair 6264123500
Loading…
↗
7
63D4853800
Clamp, cable 1
Loading…
↗
8
6FP2630100
FOR 6X4-42102-J1
Throttle cable assembly
Loading…
↗
8
6EK2630100
FOR 6X4-42102-H1/C1
Throttle cable assembly
Loading…
↗
9
9046409M42
Clamp(6b0)
Loading…
↗
10
6X48258610
Ext., wire harness (l:950mm)
Loading…
↗
11
9046513M24
Band, switch cord
Loading…
↗
12
6X48186000
Switch assembly
Loading…
↗
13
6X48252100
FOR 6X4-42102-H1/C1
Wire, lead
Loading…
↗
