RIGGING - STEERING (2017)
FITTING KIT 2

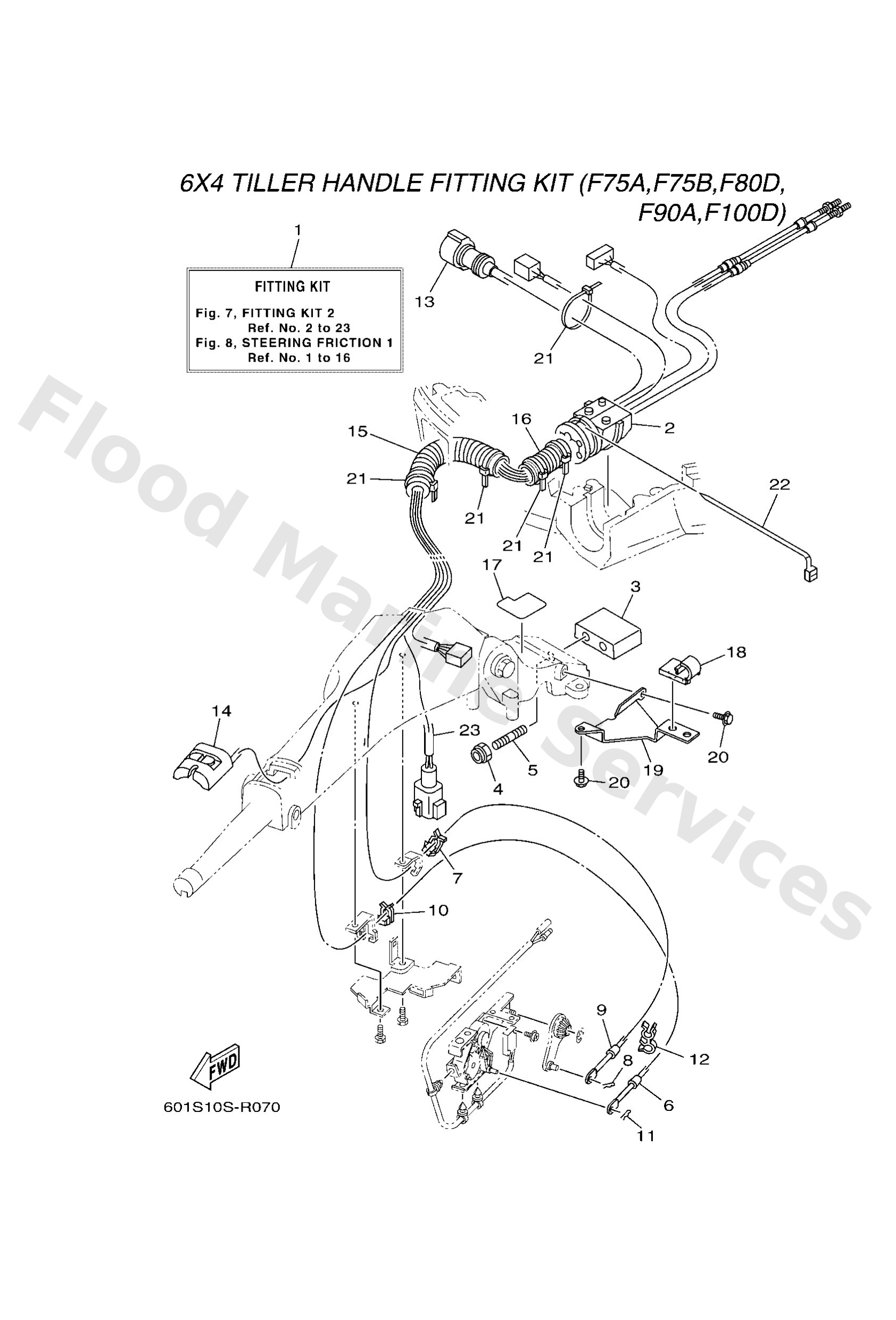

Diagram: FITTING KIT 2
Parts List
Reference
Description
Price
1
6X442102A1
LM FOR EU &ANZ
Tiller handle fit f80 / 100d
Loading…
↗
1
6X44210211
LM FOR US
-
Loading…
↗
2
68V4272510
Grommet
Loading…
↗
3
6X442121008D
Bracket
Loading…
↗
4
9018510027
Nut, self-locking
Loading…
↗
5
9011610031
Bolt, stud
Loading…
↗
6
67G4832120
Cable
Loading…
↗
7
63D4853800
Clamp, cable 1
Loading…
↗
8
9046810005
Pin, hair 6264123500
Loading…
↗
9
67G2630110
Throttle cable assembly
Loading…
↗
12
9046409M42
Clamp(6b0)
Loading…
↗
13
6X48258620
Ext., wire harness (l:1.25m)
Loading…
↗
14
6X48186000
Switch assembly
Loading…
↗
15
9044722007
Hose, with spring
Loading…
↗
16
6K38355700
Tube
Loading…
↗
17
6X44273500
Protector
Loading…
↗
18
63D2436700
Clamp, fuel pipe 2
Loading…
↗
19
6X42436400
Stay
Loading…
↗
20
9759506516
Bolt, with washer(6r6)
Loading…
↗
21
9046513M24
Band, switch cord
Loading…
↗
22
9046513M30
Clamp
Loading…
↗
23
6X48365300
FOR EU & ANZ
Wire, lead (l: 1250mm)
Loading…
↗
