RIGGING - STEERING (2008)
FITTING KIT 3

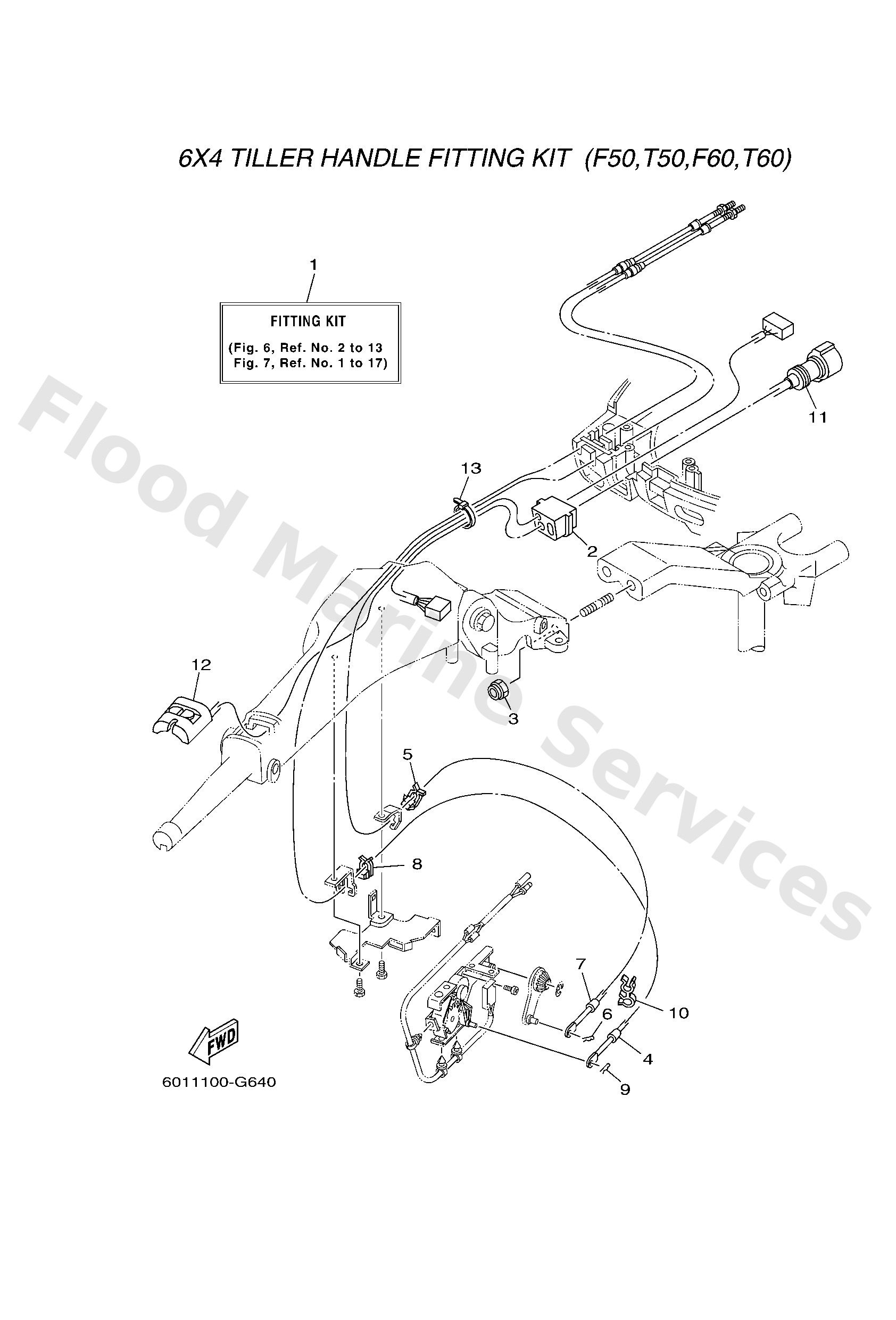

Diagram: FITTING KIT 3
Parts List
Reference
Description
Price
1
6X44210221
LM
Till f50h/ft50j/f60f/ft60g/f70
Loading…
↗
2
6C54272530
Grommet
Loading…
↗
3
9018510051
Nut, self-locking
Loading…
↗
4
67C4832111
Cable
Loading…
↗
5
63D4853800
Clamp, cable 1
Loading…
↗
6
9046810005
Pin, hair 6264123500
Loading…
↗
7
69W2630100
Throttle cable assembly
Loading…
↗
10
9046409M42
Clamp(6b0)
Loading…
↗
11
6X48258610
Ext., wire harness (l:950mm)
Loading…
↗
12
6X48186000
Switch assembly
Loading…
↗
13
9046513M36
Clamp(6h4)
Loading…
↗
