Yamaha Outboard Parts - FITTING KIT 3 - RIGGING - STEERING (2012) | Flood Marine

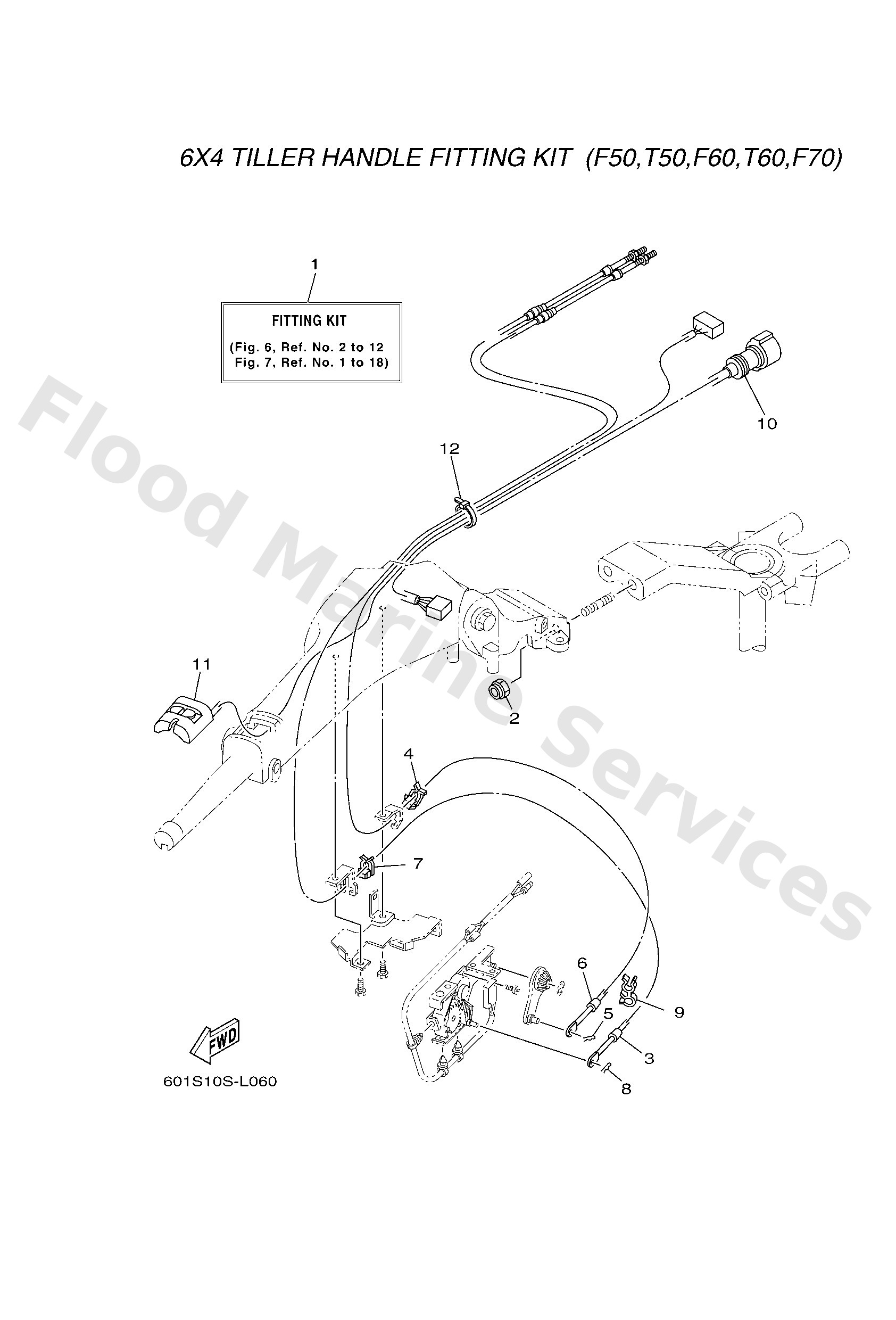

Diagram: FITTING KIT 3

Diagram

Parts List

Reference
Description
Price


1
6X44210222 LM
Till f50h/ft50j/f60f/ft60g/f70
Loading…

↗
2
9018510051
Nut, self-locking
Loading…

↗
3
67C4832111
Cable
Loading…

↗
4
63D4853800
Clamp, cable 1
Loading…

↗
5
9046810005
Pin, hair 6264123500
Loading…

↗
6
69W2630100
Throttle cable assembly
Loading…

↗
9
9046409M42
Clamp(6b0)
Loading…

↗
10
6X48258610
Ext., wire harness (l:950mm)
Loading…

↗
11
6X48186000
Switch assembly
Loading…

↗
12
9046513M36
Clamp(6h4)
Loading…

↗
