RIGGING - STEERING (2017)
FITTING KIT 3

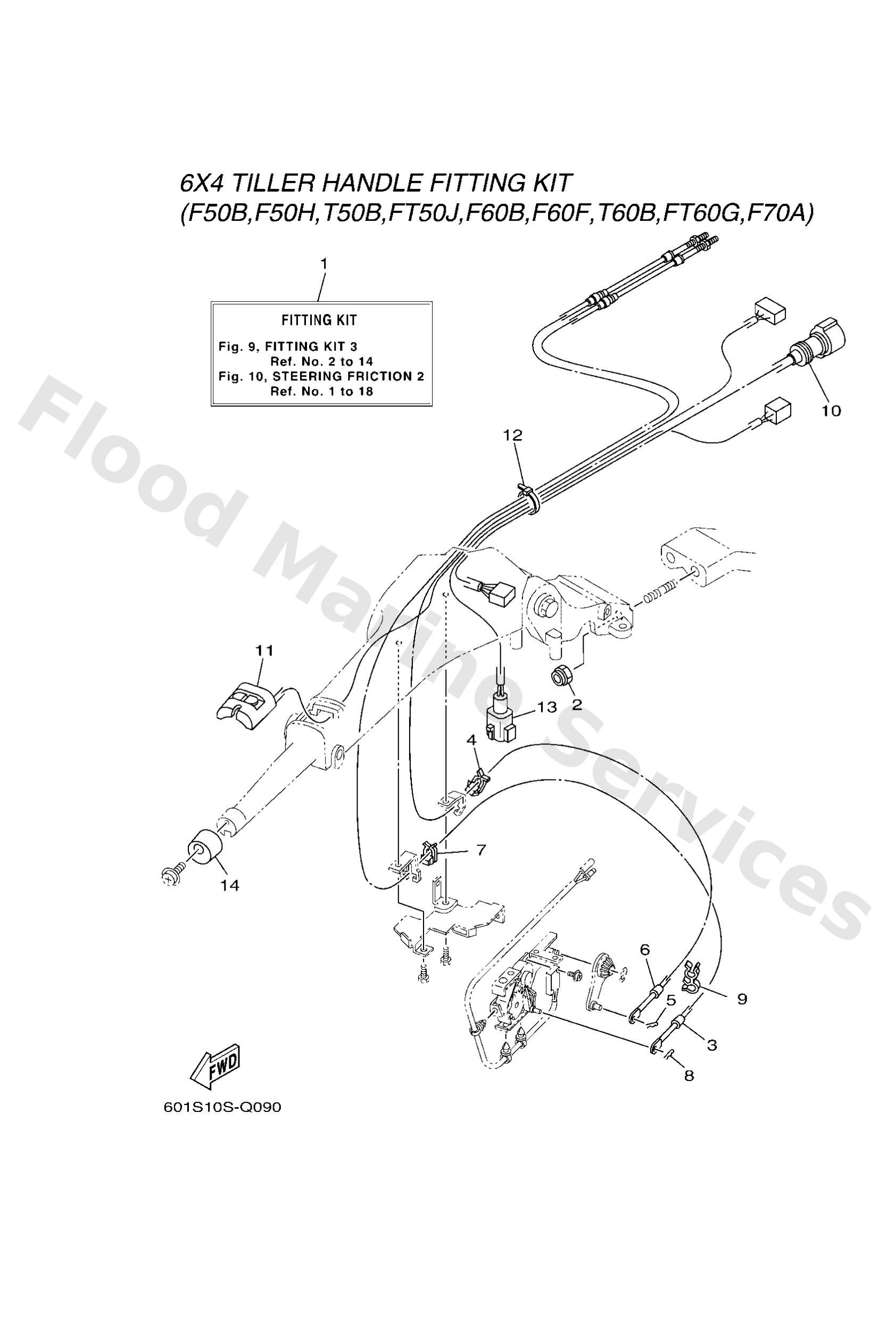

Diagram: FITTING KIT 3
Parts List
Reference
Description
Price
1
6X44210291
LM FOR EU & ANZ
Till f50h/ft50j/f60f/ft60g/f70
Loading…
↗
1
6X44210223
LM FOR US
-
Loading…
↗
2
9018510027
Nut, self-locking
Loading…
↗
3
67C4832111
Cable
Loading…
↗
4
63D4853800
Clamp, cable 1
Loading…
↗
5
9046810005
Pin, hair 6264123500
Loading…
↗
6
69W2630100
Throttle cable assembly
Loading…
↗
9
9046409M42
Clamp(6b0)
Loading…
↗
10
6X48258610
Ext., wire harness (l:950mm)
Loading…
↗
11
6X48186000
Switch assembly
Loading…
↗
12
9046513M36
Clamp(6h4)
Loading…
↗
13
6X48365320
FOR EU & ANZ
Wire, lead (l: 700mm)
Loading…
↗
14
6X44272800
FOR EU & ANZ
Cap
Loading…
↗
