RIGGING - STEERING (2011)
FITTING KIT 4

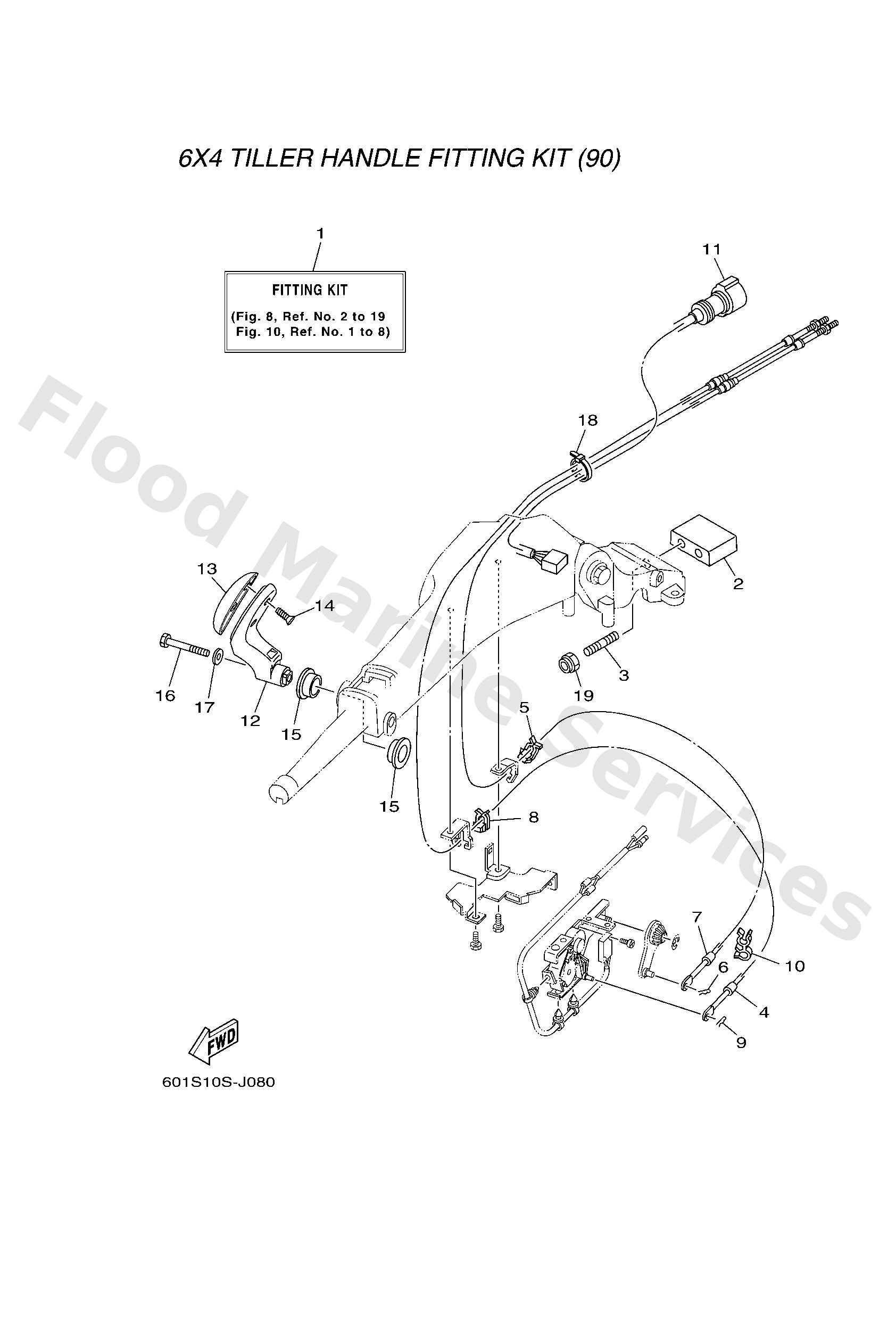

Diagram: FITTING KIT 4
Parts List
Reference
Description
Price
1
6X44210241
LM
F30/f40fi handle fitting kit
Loading…
↗
2
6X442121008D
Bracket
Loading…
↗
3
9011610031
Bolt, stud
Loading…
↗
4
6H14832111
Cable
Loading…
↗
5
63D4853800
Clamp, cable 1
Loading…
↗
6
9046810005
Pin, hair 6264123500
Loading…
↗
7
6H12630101
Throttle cable assembly
Loading…
↗
10
9046409M42
Clamp(6b0)
Loading…
↗
11
6X48258630
Extension, wire harness
Loading…
↗
12
6X444159108D
Handle, gear shift
Loading…
↗
13
6X44417300
Lever, shift control
Loading…
↗
14
9778060920
Screw, tapping
Loading…
↗
15
9038626MA3
Bush
Loading…
↗
16
9709508040
Bolt, hexagon
Loading…
↗
17
9299508600
Washer, plain (663)
Loading…
↗
18
9046513M36
Clamp(6h4)
Loading…
↗
19
9018510051
Nut, self-locking
