RIGGING - STEERING (2017)
FITTING KIT 6

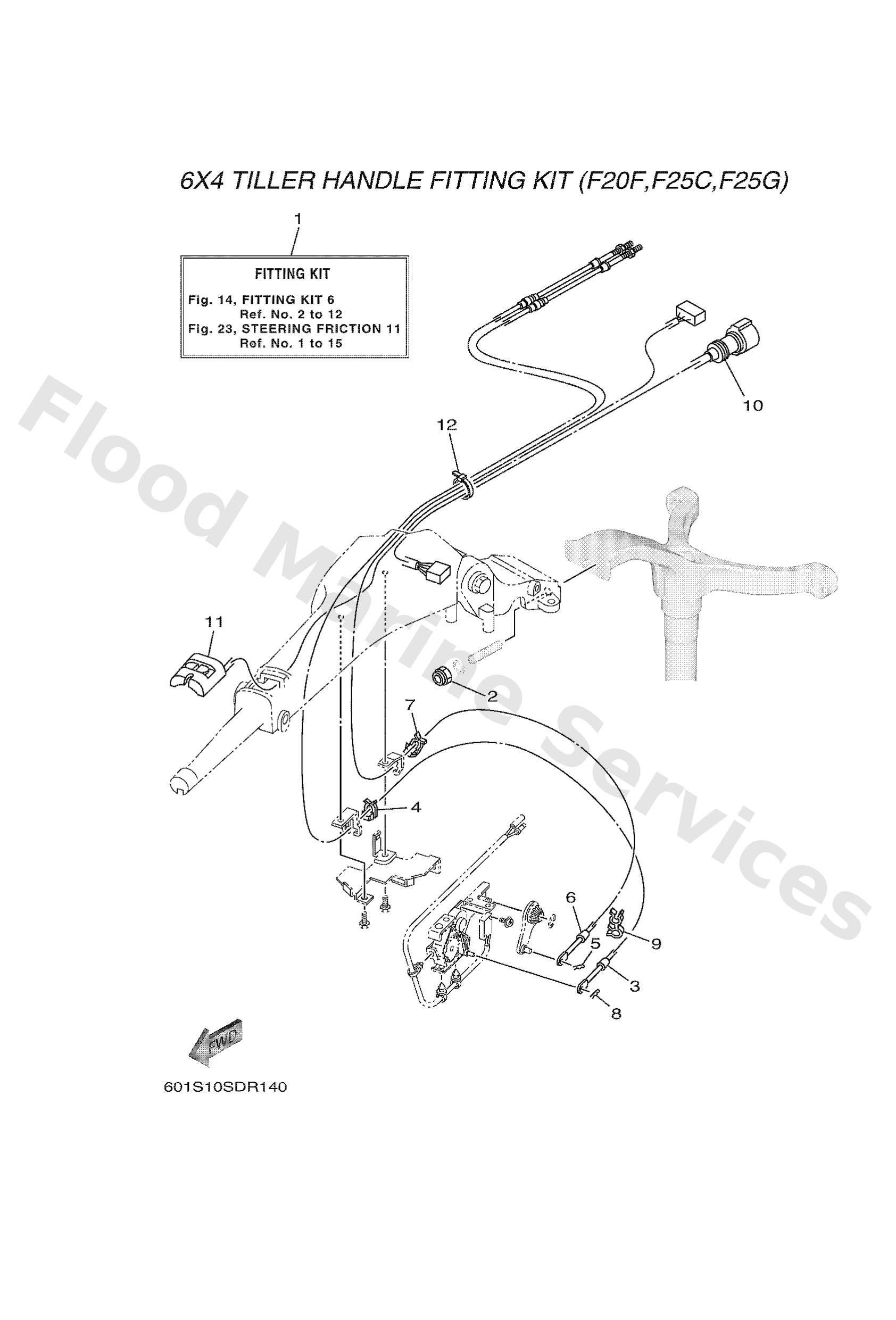

Diagram: FITTING KIT 6
Parts List
Reference
Description
Price
1
6X442102F0
LM FOR EU & ANZ
Fitting kit f25g
Loading…
↗
1
6X442102E0
LM FOR US
-
Loading…
↗
2
9018510027
Nut, self-locking
Loading…
↗
3
63D4832111
Cable
Loading…
↗
4
63D4853800
Clamp, cable 1
Loading…
↗
5
9046810005
Pin, hair 6264123500
Loading…
↗
6
6FM2630110
Throttle cable assembly
Loading…
↗
9
9046409M42
Clamp(6b0)
Loading…
↗
10
6X48258610
Ext., wire harness (l:950mm)
Loading…
↗
11
6X48186000
Switch assembly
Loading…
↗
12
9046513M39
Clamp(6e8)
Loading…
↗
