Yamaha Outboard Parts - FLYWHEEL HOUSING 1 - ME422STIP2 (2013) | Flood Marine

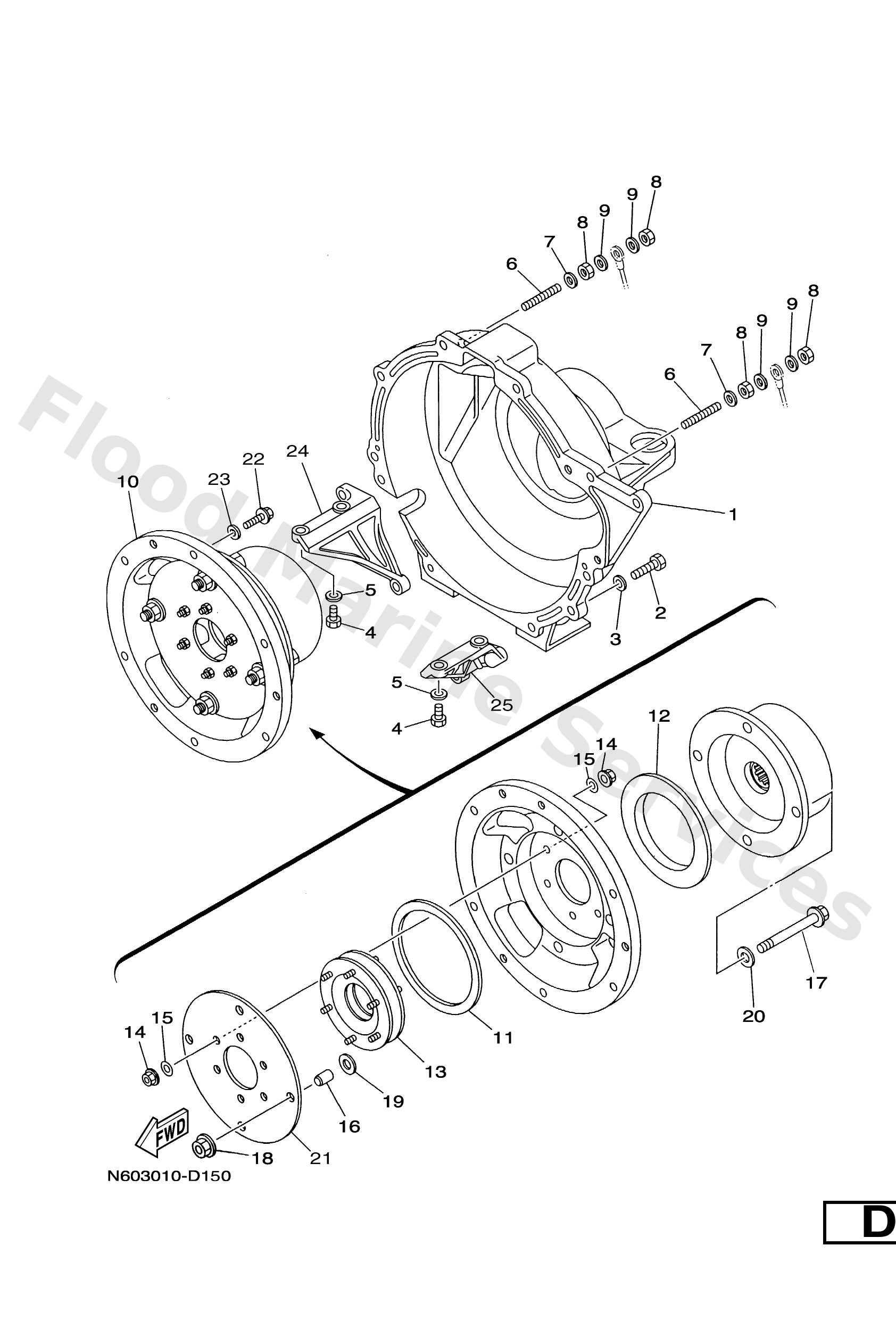

Diagram: FLYWHEEL HOUSING 1

Diagram

Parts List

Reference
Description
Price


1
6TA1533101
Housing, flywheel
Loading…

↗
2
9701712040
Bolt(6ta)
Loading…

↗
3
90201124G9
Washer, plate (25h)
Loading…

↗
4
9702712035
Bolt, hexagon
Loading…

↗
5
9290712600
Washer(6ta)
Loading…

↗
6
9011610M49
Bolt, stud(6ta)
Loading…

↗
7
9020110774
Washer, plate (3l6)
Loading…

↗
8
9531710600
Nut(6td)
Loading…

↗
9
9290710600
Washer(6ta)
Loading…

↗
10
6TA1630602
Clutch damper assembly
Loading…

↗
11
6TA1618100
Spacer 1
Loading…

↗
12
6TA1618200
Spacer 2
Loading…

↗
13
6TA1678201
Damper
Loading…

↗
14
6TA1664700
Nut
Loading…

↗
15
6TA1664800
Washer
Loading…

↗
16
6TA1611200
Bush
Loading…

↗
17
6TA1467800
Bolt
Loading…

↗
18
6TA1467900
Nut
Loading…

↗
19
6TA1569600
Washer 2
Loading…

↗
20
6TA1569500
Washer 2
Loading…

↗
21
6TA1611800
Plate, side 1
Loading…

↗
22
9581708030
Bolt, flange(3vp)
Loading…

↗
23
90201084K5
Washer, plate
Loading…

↗
24
N571199800
Plate, stiffener rh
Loading…

↗
25
N571199900
Bracket 2
Loading…

↗
