115BETO (1998)
FUEL

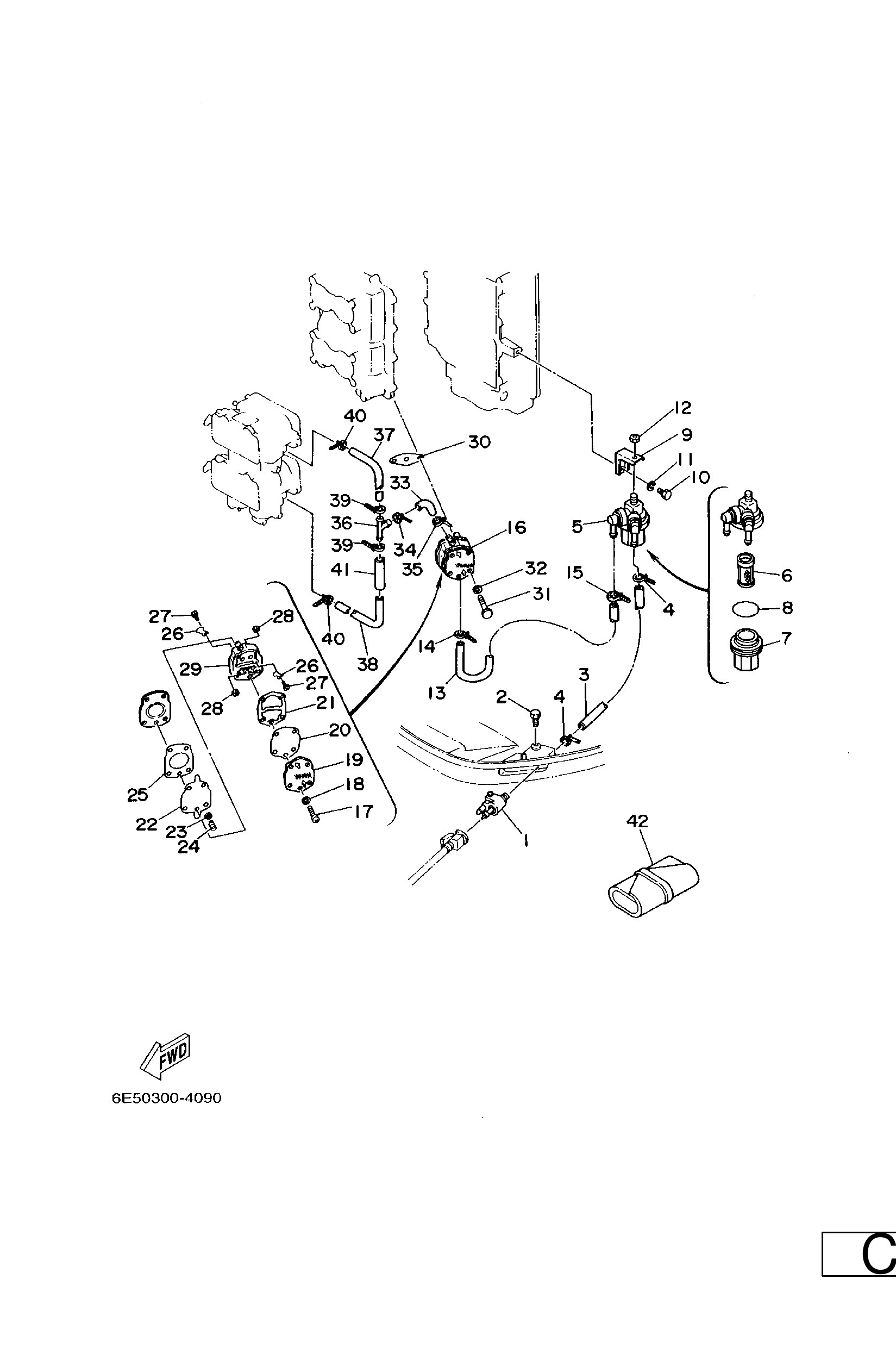

Diagram: FUEL
Parts List
Reference
Description
Price
1
6E52430410
Fuel pipe joint comp. 1
Loading…
↗
2
9709506028
Bolt (6g0)
Loading…
↗
3
6E52431300
Pipe 3
Loading…
↗
4
9046511M10
Clamp
Loading…
↗
5
6R32456000
Filter assembly
Loading…
↗
6
61N2456300
Element, filter
Loading…
↗
7
61N2452100
Cup, filter
Loading…
↗
8
9321032738
O-ring(1wg)
Loading…
↗
9
6E52456600
Bracket, filter
Loading…
↗
10
9709506014
Bolt(gj3)
Loading…
↗
11
9299506100
Washer(6a1)
Loading…
↗
12
9538008600
Nut (661)
Loading…
↗
13
6E52431400
Pipe 4
Loading…
↗
16
6E52441003
Fuel pump assembly
Loading…
↗
17
9858005035
Screw, pan head (686)
Loading…
↗
18
9299005600
Washer, plain (646)
Loading…
↗
19
6E52441300
Body 2
Loading…
↗
20
6E52447100
Diaphragm
Loading…
↗
21
6E52443500
Gasket, body 2
Loading…
↗
22
6E52441100
Diaphragm
Loading…
↗
23
6482442400
Seat,spring
Loading…
↗
24
6E52442300
Spring, diaphragm
Loading…
↗
25
6E52443402
Gasket, body
Loading…
↗
26
6A02442101
Valve, check
Loading…
↗
27
6A01432500
Screw, pan head
Loading…
↗
28
9538003600
Nut (6g8)
Loading…
↗
29
6E52441202
Body 1
Loading…
↗
30
65024431A0
Gasket,fuel pump
Loading…
↗
31
9709506050
Bolt(jf7)
Loading…
↗
32
9299006600
Washer, plain (646)
Loading…
↗
33
6G52431610
Pipe 6
Loading…
↗
36
6E52437610
Pipe, joint 1
Loading…
↗
37
6G52431810
Hose (l90)
Loading…
↗
38
6G52431910
Pipe 9
Loading…
↗
41
9044615M07
Hose(6g4)
Loading…
↗
42
656W281002
Tool kit
Loading…
↗
