Yamaha Outboard Parts - FUEL - 20DMHO (2003) | Flood Marine
New Search
Parts
New Outboards
Home
20DMHO (2003)
FUEL

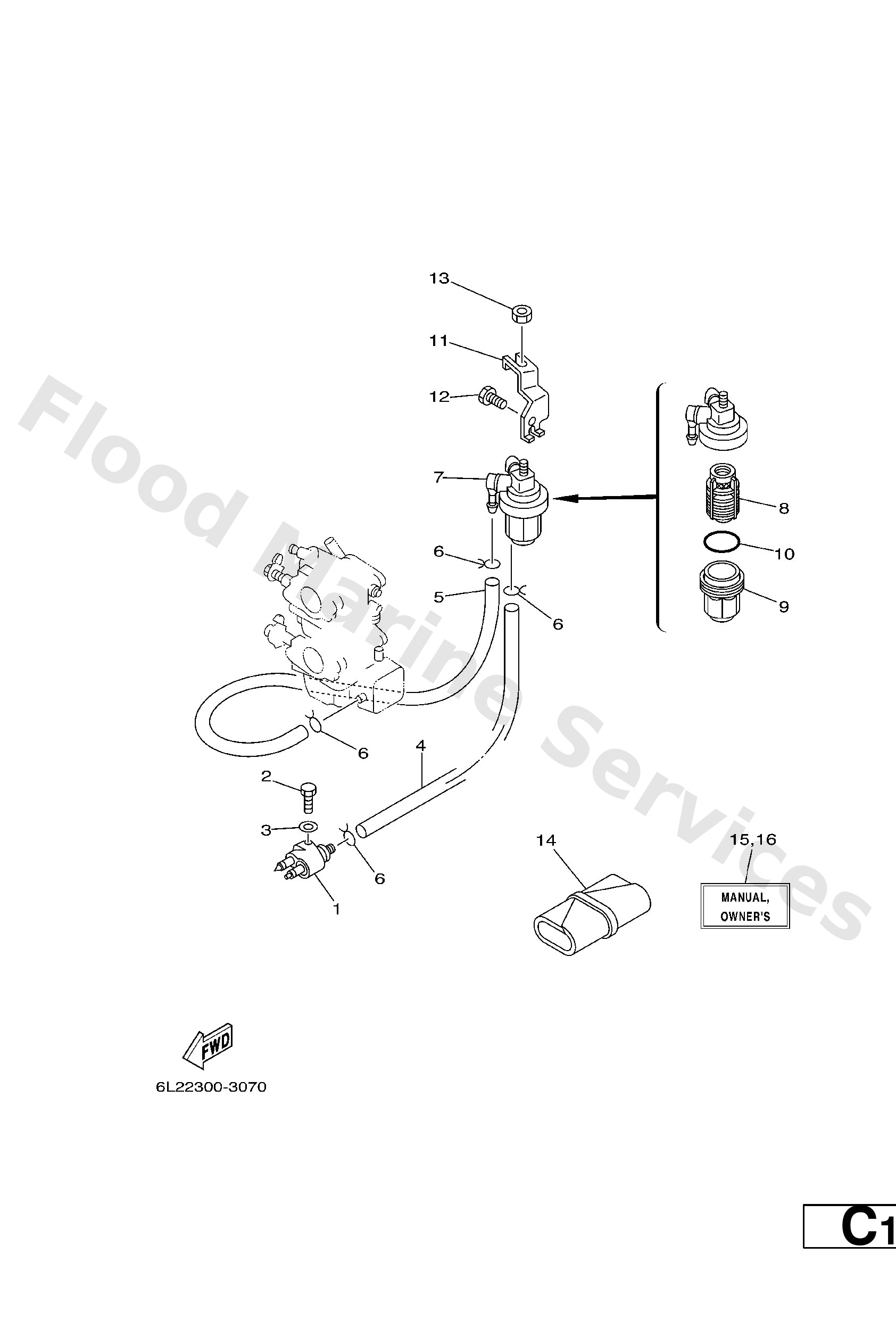

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G1−24304−02
Fuel pipe joint comp. 1
Loading…
↗
2
97095−06020
Bolt(7u8)
Loading…
↗
3
92995−06600
Washer, plain (646)
Loading…
↗
4
6H4−24311−00
Pipe 1
Loading…
↗
5
6L2−24311−00
Pipe, fuel 1
Loading…
↗
6
90467−08004
Clip, pipe 6162435600
Loading…
↗
7
61N−24560−00
Filter assembly
Loading…
↗
8
61N−24563−00
Element, filter
Loading…
↗
9
61N−24521−00
Cup, filter
Loading…
↗
10
93210−32738
O-ring(1wg)
Loading…
↗
11
6L2−24566−00
Bracket, filter
Loading…
↗
12
97013−06014
Bolt(gj3)
Loading…
↗
13
95380−08600
Nut (661)
Loading…
↗
14
656−W2810−02
Tool kit
Loading…
↗
15
6L3−28199−75−A0
UR (E,F,S)
Om 20d, 25n, 30d
Loading…
↗
15
6L3−28199−75−B0
UR (D,NL,I)
Om 20d, 25n, 30d
Loading…
↗
16
6L3−28199−86−A0
UR (DK,P,GR)
O/m 20dmho/dwo/25nmho/30de '03
Loading…
↗
16
6L3−28199−86−B0
UR (N,S,SS)
O/m 20dmho/dwo/25nmho/30de '03
Loading…
↗
