Yamaha Outboard Parts - FUEL - 20DMHO (2004) | Flood Marine

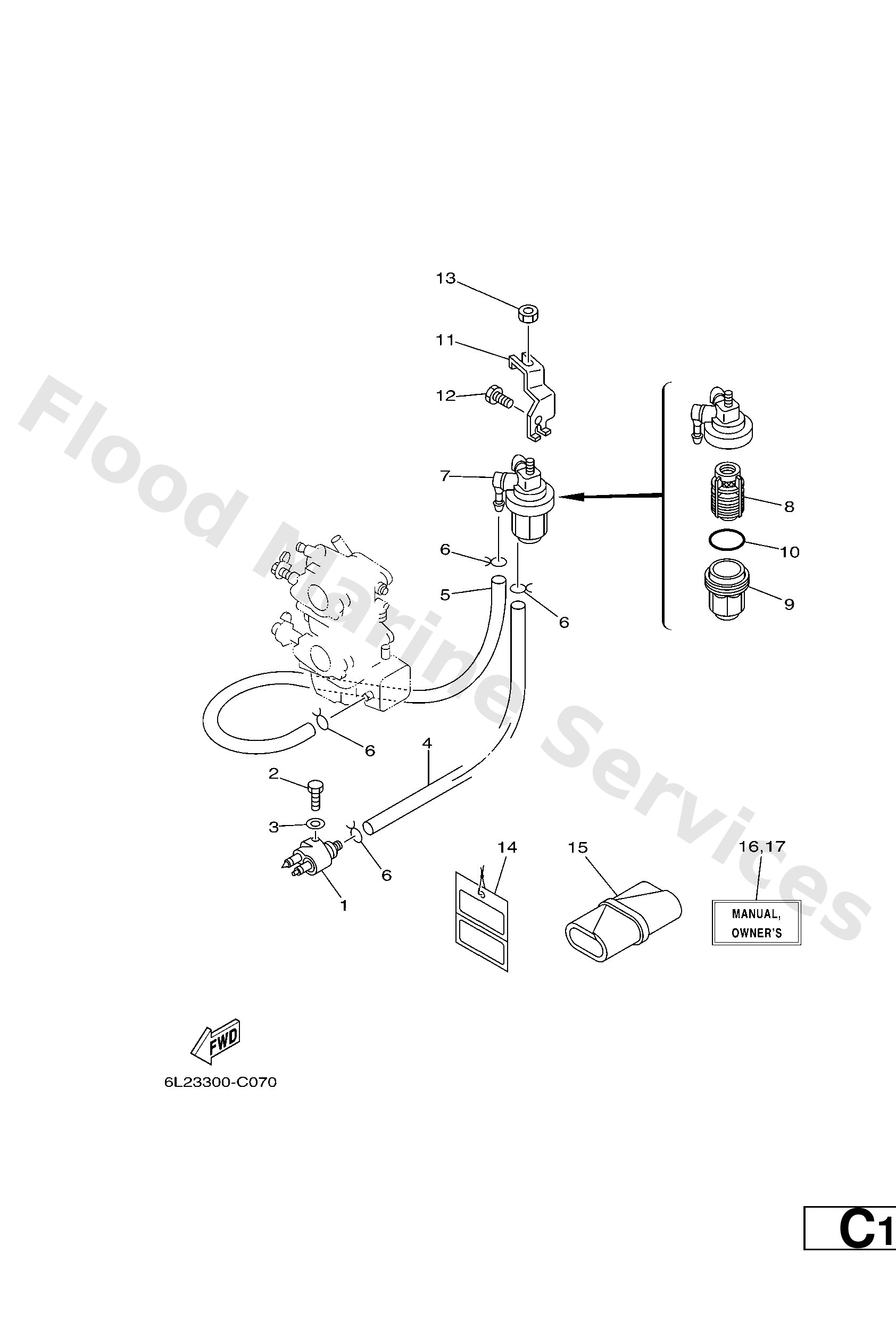

Diagram: FUEL

Diagram

Parts List

Reference
Description
Price


1
6G12430402
Fuel pipe joint comp. 1
Loading…

↗
2
9709506020
Bolt(7u8)
Loading…

↗
3
9299506600
Washer, plain (646)
Loading…

↗
4
6H42431100
Pipe 1
Loading…

↗
5
6L22431100
Pipe, fuel 1
Loading…

↗
6
9046708004
Clip, pipe 6162435600
Loading…

↗
7
61N2456000
Filter assembly
Loading…

↗
8
61N2456300
Element, filter
Loading…

↗
9
61N2452100
Cup, filter
Loading…

↗
10
9321032738
O-ring(1wg)
Loading…

↗
11
6L22456600
Bracket, filter
Loading…

↗
12
9701306014
Bolt(gj3)
Loading…

↗
13
9538008600
Nut (661)
Loading…

↗
14
61H2819R31
-
Loading…

↗
15
656W281002
Tool kit
Loading…

↗
16
6L32819976A0 UR (E,F,S)
Om 2od/25n/30d
Loading…

↗
16
6L32819976B0 UR (D,NL,I)
Om 20d/25n
Loading…

↗
17
6L32819987A0 UR (DK,P,GR)
Om 30de/wh/e '04
Loading…

↗
17
6L32819987B0 UR (N,S,SS)
Om 30de/wh/e '04
Loading…

↗
