20DMHO (2007)
FUEL

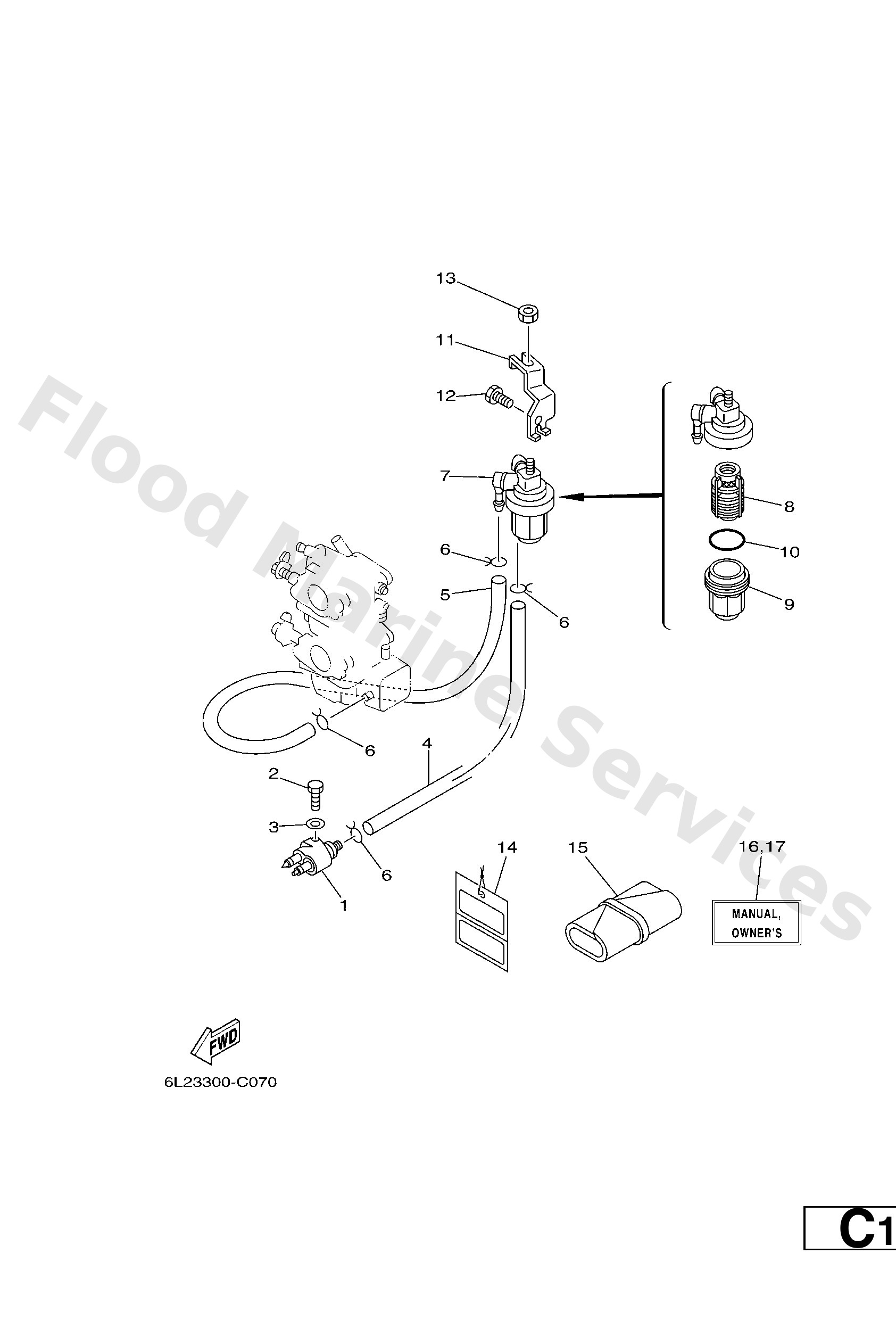

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
2
9709506020
Bolt(7u8)
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
6H42431100
Pipe 1
Loading…
↗
5
6L22431100
Pipe, fuel 1
Loading…
↗
6
9046708004
Clip, pipe 6162435600
Loading…
↗
7
61N2456000
Filter assembly
Loading…
↗
8
61N2456300
Element, filter
Loading…
↗
9
61N2452100
Cup, filter
Loading…
↗
10
9321032738
O-ring(1wg)
Loading…
↗
11
6L22456600
Bracket, filter
Loading…
↗
12
9701306014
Bolt(gj3)
Loading…
↗
13
9538008600
Nut (661)
Loading…
↗
14
61H2819R31
-
Loading…
↗
15
656W281002
Tool kit
Loading…
↗
16
6L32819979E0
UR (E)
O/m 25n/20d '07
Loading…
↗
16
6L32819979F0
UR (F)
O/m 25n/20d '07
Loading…
↗
16
6L32819979S0
UR (ES)
O/m 25n/20d '07
Loading…
↗
16
6L32819979G0
UR (D)
O/m 25n/20d '07
Loading…
↗
16
6L32819979D0
UR (NL)
O/m 25n/20d '07
Loading…
↗
16
6L32819979H0
UR (I)
O/m 25n/20d '07
Loading…
↗
17
6L3281998AK0
UR (DK)
O/m 25n/20d '07
Loading…
↗
17
6L3281998AR0
UR (GR)
O/m 25n/20d '07
Loading…
↗
17
6L3281998AP0
UR (P)
O/m 25n/20d '07
Loading…
↗
17
6L3281998AN0
UR (N)
O/m 25n/20d '07
Loading…
↗
17
6L3281998AM0
UR (S)
O/m 25n/20d '07
Loading…
↗
17
6L3281998AL0
UR (SF)
O/m 25n/20d '07
Loading…
↗
