25BMH (2002)
FUEL

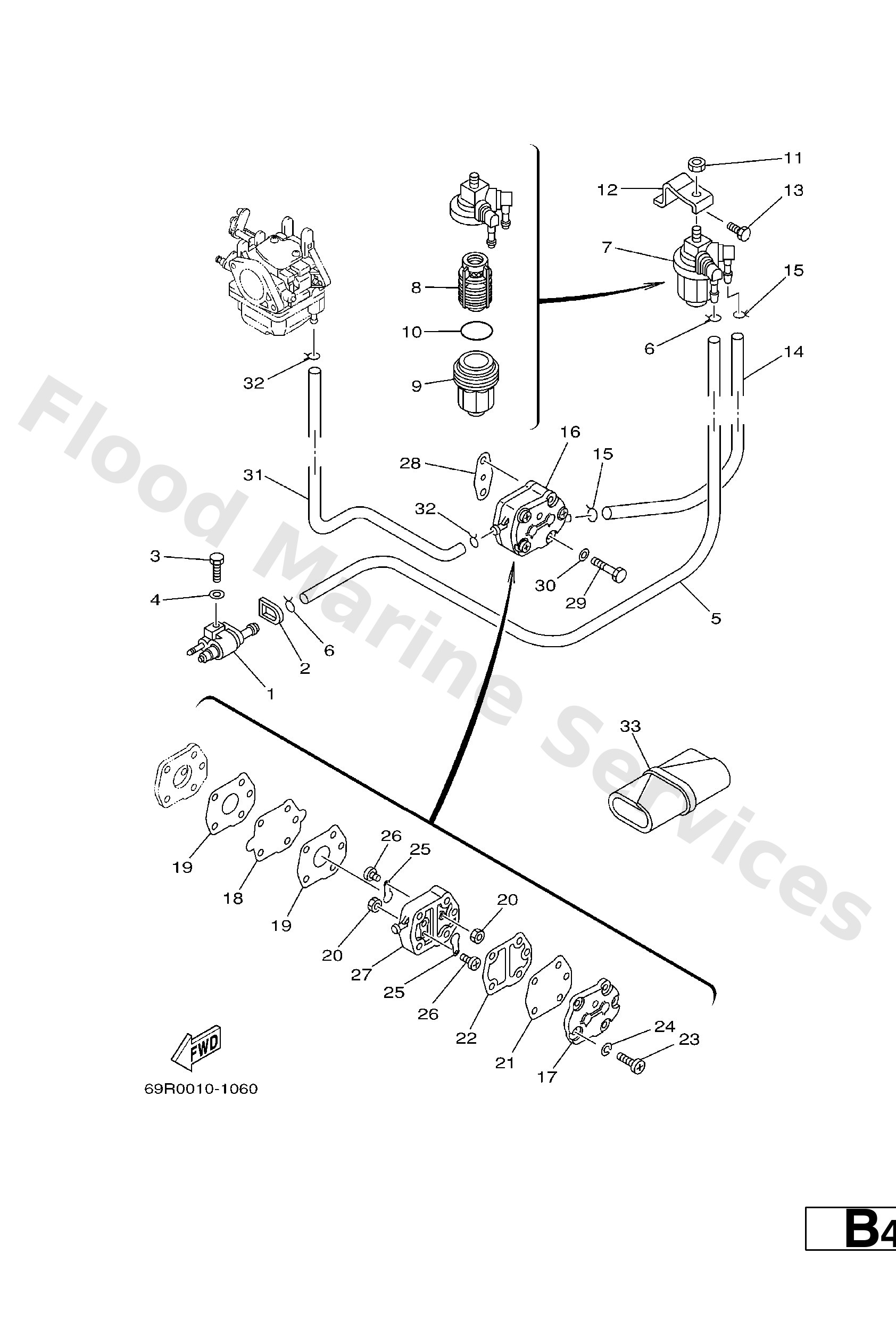

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G1--24304--02
Fuel pipe joint comp. 1
Loading…
↗
2
61N--24329--00
Seal
Loading…
↗
3
97095--06020
Bolt(7u8)
Loading…
↗
4
92995--06600
Washer, plain (646)
Loading…
↗
5
90445--09M75
Hose (l1500)
Loading…
↗
6
90467--08004
Clip, pipe 6162435600
Loading…
↗
7
61N--24560--00
Filter assembly
Loading…
↗
8
61N--24563--00
Element, filter
Loading…
↗
9
61N--24521--00
Cup, filter
Loading…
↗
10
93210--32738
O-ring(1wg)
Loading…
↗
11
95380--08600
Nut (661)
Loading…
↗
12
61N--24566--01
Bracket, filter
Loading…
↗
13
97013--06014
Bolt(gj3)
Loading…
↗
14
689--24311--00
Hose
Loading…
↗
16
692--24410--00
Fuel pump assembly
Loading…
↗
17
6A0--24413--00
Cover, pump
Loading…
↗
18
692--24411--00
Diaphragm
Loading…
↗
19
648--24434--01
Gasket, body
Loading…
↗
20
95380--03600
Nut (6g8)
Loading…
↗
21
663--24411--00
Diaphragm
Loading…
↗
22
648--24435--02
Gasket, body 2
Loading…
↗
23
98503--05028
Ybs86-530 screw,panhead
Loading…
↗
24
92990--05100
Ybs67-5 washer, spring
Loading…
↗
25
6A0--24421--01
Valve, check
Loading…
↗
26
6A0--14325--00
Screw, pan head
Loading…
↗
27
6A0--24412--02
Body 1
Loading…
↗
28
650--24431--A0
Gasket,fuel pump
Loading…
↗
29
97095--06040
Bolt (682)
Loading…
↗
31
6A1--24311--00
Pipe 1
Loading…
↗
33
656--W2810--02
Tool kit
Loading…
↗
