25NMHO (2009)
FUEL

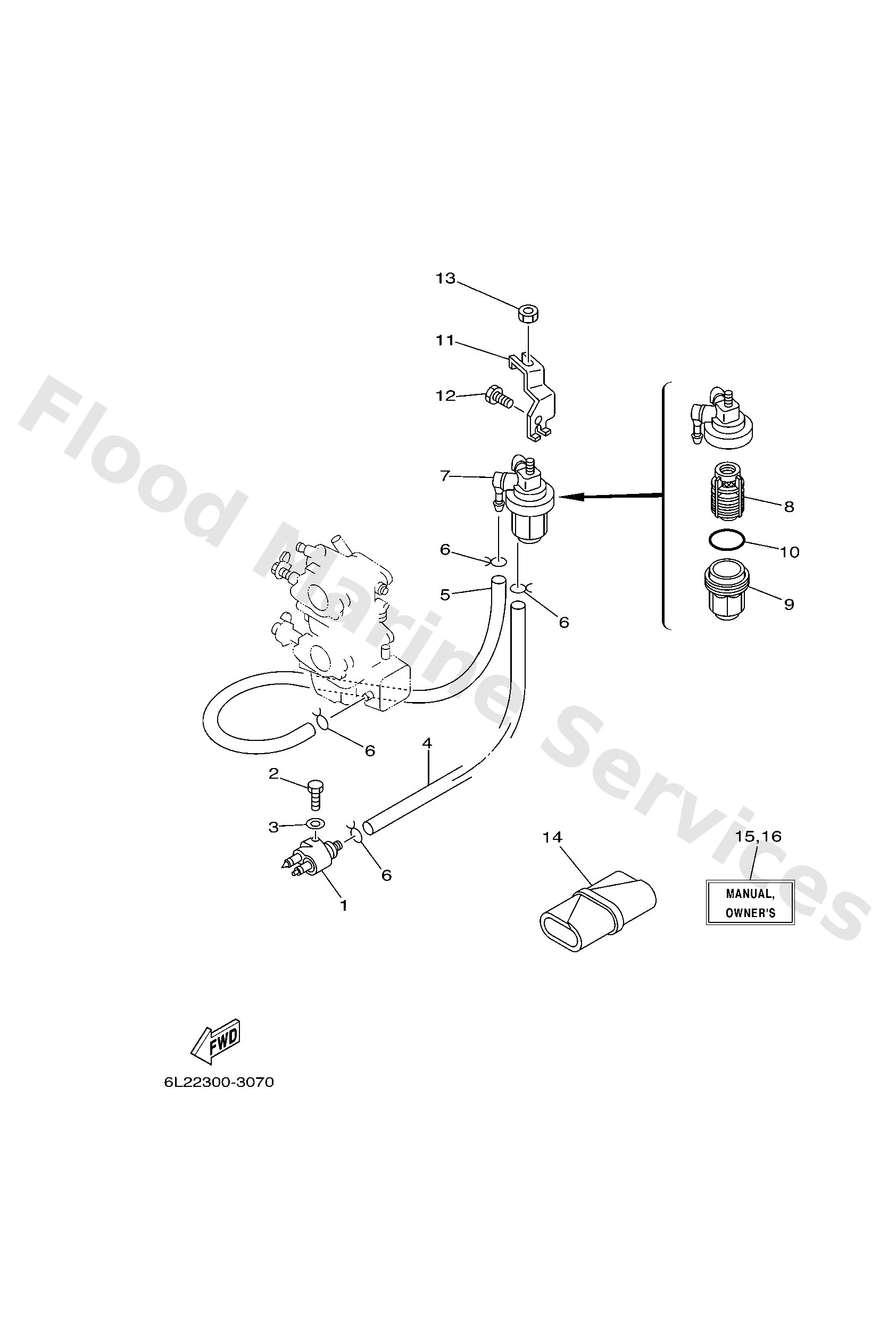

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
2
9709506020
Bolt(7u8)
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
6H42431100
Pipe 1
Loading…
↗
5
6L22431100
Pipe, fuel 1
Loading…
↗
6
9046708004
Clip, pipe 6162435600
Loading…
↗
7
61N2456000
Filter assembly
Loading…
↗
8
61N2456300
Element, filter
Loading…
↗
9
61N2452100
Cup, filter
Loading…
↗
10
9321032738
O-ring(1wg)
Loading…
↗
11
6L22456600
Bracket, filter
Loading…
↗
12
9701306014
Bolt(gj3)
Loading…
↗
13
9538008600
Nut (661)
Loading…
↗
14
656W281002
Tool kit
Loading…
↗
15
6L3281997BE0
UR (E)
Om 20d/25n '09
Loading…
↗
15
6L3281997BF0
UR (F)
Om 20d/25n '09
Loading…
↗
15
6L3281997BS0
UR (ES)
Om 20d/25n '09
Loading…
↗
15
6L3281997BG0
UR (D)
Om 20d/25n '09
Loading…
↗
15
6L3281997BD0
UR (NL)
Om 20d/25n '09
Loading…
↗
15
6L3281997BH0
UR (I)
Om 20d/25n '09
Loading…
↗
16
6L3281998CK0
UR (DK)
Om 20d/25n '09
Loading…
↗
16
6L3281998CR0
UR (GR)
Om 20d/25n '09
Loading…
↗
16
6L3281998CP0
UR (P)
Om 20d/25n '09
Loading…
↗
16
6L3281998CN0
UR (N)
Om 20d/25n '09
Loading…
↗
16
6L3281998CM0
UR (S)
Om 20d/25n '09
Loading…
↗
16
6L3281998CL0
UR (SF)
Om 20d/25n '09
Loading…
↗
