30DEO (2002)
FUEL

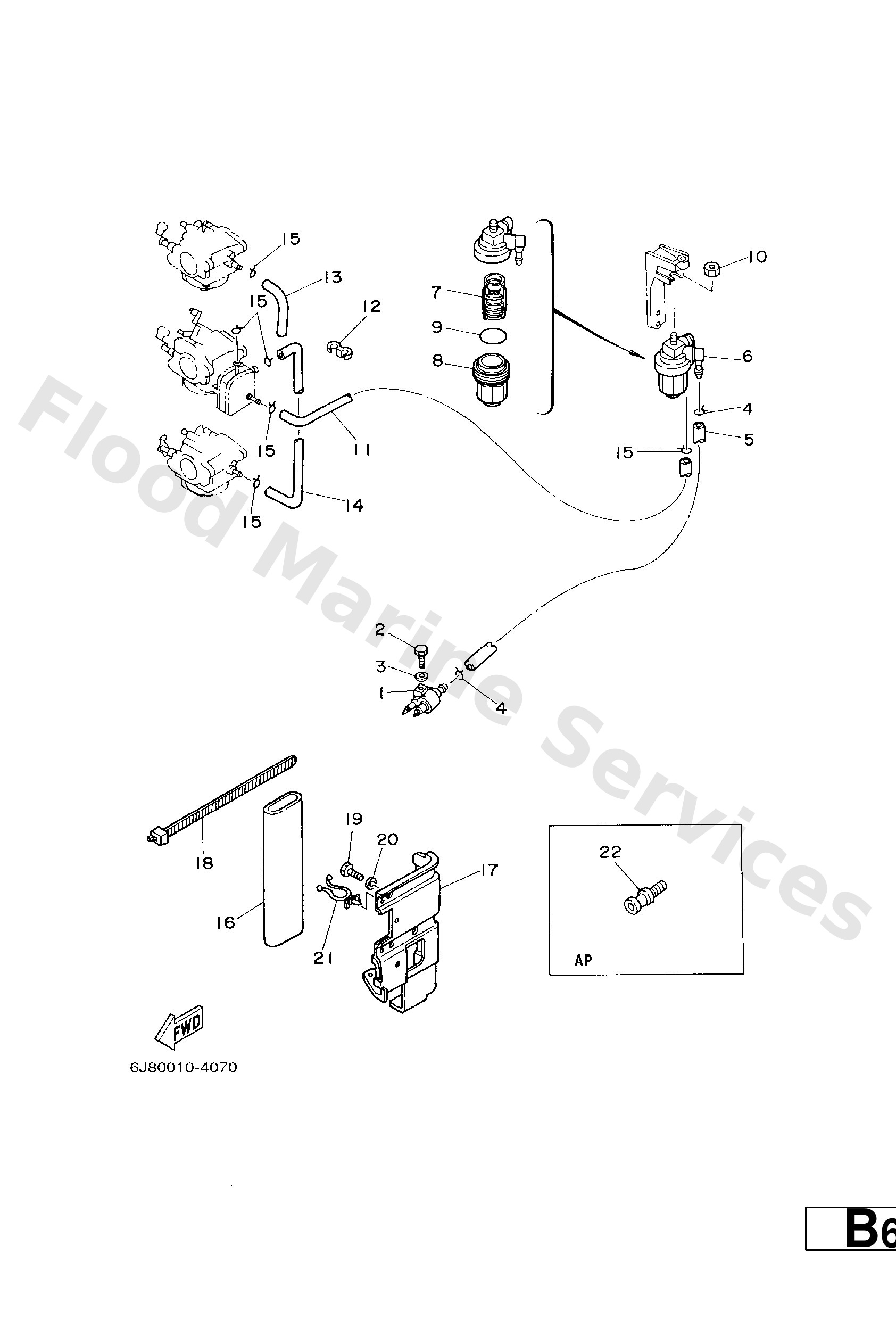

Diagram: FUEL
Parts List
Reference
Description
Price
1
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
2
9709506025
Bolt
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
9046708004
Clip, pipe 6162435600
Loading…
↗
5
9044509M00
Hose (l180)
Loading…
↗
6
61N2456000
Filter assembly
Loading…
↗
7
61N2456300
Element, filter
Loading…
↗
8
61N2452100
Cup, filter
Loading…
↗
9
9321032738
O-ring(1wg)
Loading…
↗
10
9017908M15
Nut(6j8)
Loading…
↗
11
6E52431200
Pipe 2
Loading…
↗
12
9046409M21
Clamp(6j8)
Loading…
↗
13
6882431300
Pipe, fuel 2
Loading…
↗
14
6J82431100
Pipe, fuel 2
Loading…
↗
16
656W281002
Tool kit
Loading…
↗
17
6J82817000
Tool, holder
Loading…
↗
18
6G12811G00
Band
Loading…
↗
19
9709508016
Bolt, hexagon deep recess
Loading…
↗
20
9299508600
Washer, plain (663)
Loading…
↗
21
9046412M17
Clamp(6j8)
Loading…
↗
22
6E0281930094
D)12.5MM
Plug, water check
Loading…
↗
